COL-03016-044-16-CBO - Datasheet
MBA
Category Information

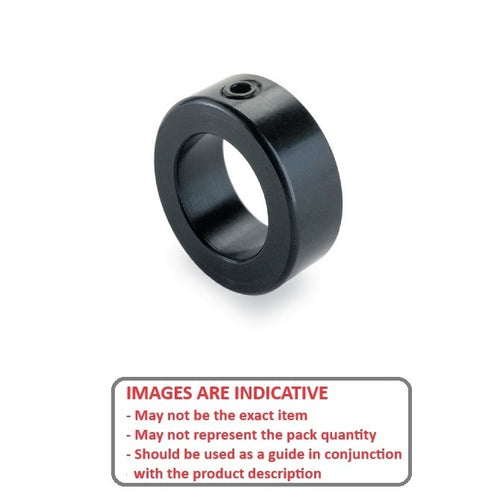

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
30.163
mm
(Equiv. 1.188 in.) - Outside Diameter (D)
44.45
mm
(Equiv. 1.75 in.) - Overall Width (S)
15.9
mm
(Equiv. 0.626 in.) - Material Steel, Black Oxide Coated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SC-1125-BO
- SC1125BO
