IP-109RS - Datasheet

MBA

Category Information

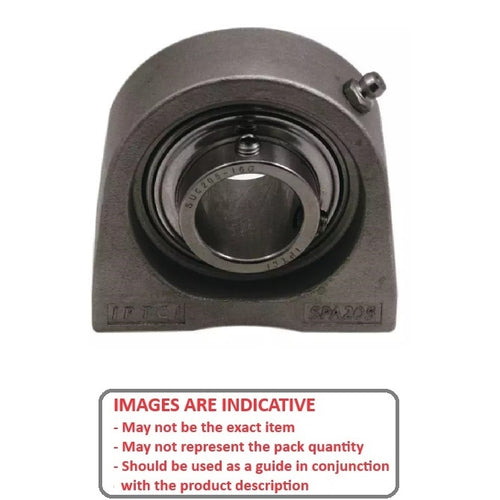

Housing and Bearing Assembly - Tapped Base - Stainless

Stainless Tapped Base Housing Assembly. Full stainless steel bearing units are the best solution for hostile chemical washdown applications. All metal bearing insert components are a combination of 302, 304 and 440 stainless steel. Seals are silicone rubber. Grease is H-1 food grade.

  • Operating temperature minus 20 oC to +120 deg C
  • Solid 304 stainless housings have a machined base and extremely smooth surface finish, essential for demanding washdown installations.
  • These housings do not experience flaking, cracking or discolouration and are virtually unaffected by scrapes.
  • Bearings are removable.
  • Food grade

Product Data

  • Bore : 30.150 mm
    (Equiv. 1.187 in.)

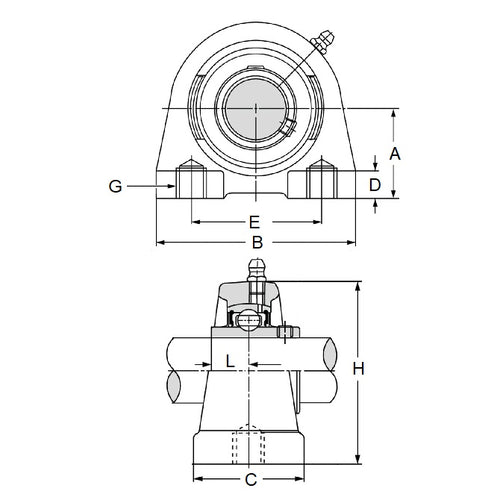

  • Centre Height (A) 42.863 mm
    (Equiv. 1.688 in.)
  • Width (B) 101.600 mm
    (Equiv. 4 in.)
  • Depth (C) 38.100 mm
  • Bolt Depth (D) 15.875 mm
  • Bolt Distances (E) 76.200 mm
  • Thread (G) 7/16-14 UNC (11.11mm)
  • K 38.100 mm
  • L 22.200 mm
Country of Origin: US
