Miniature Bearings Australia
REF-300-R-CB - Datasheet
MBA
Category Information

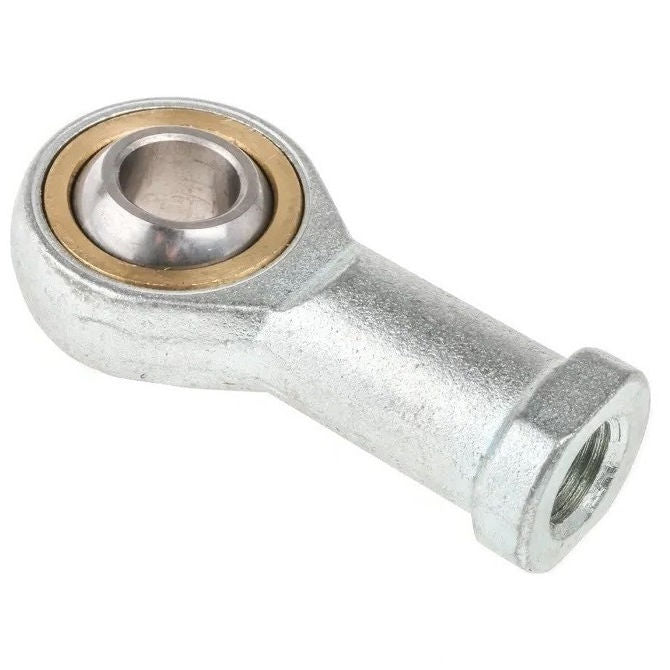

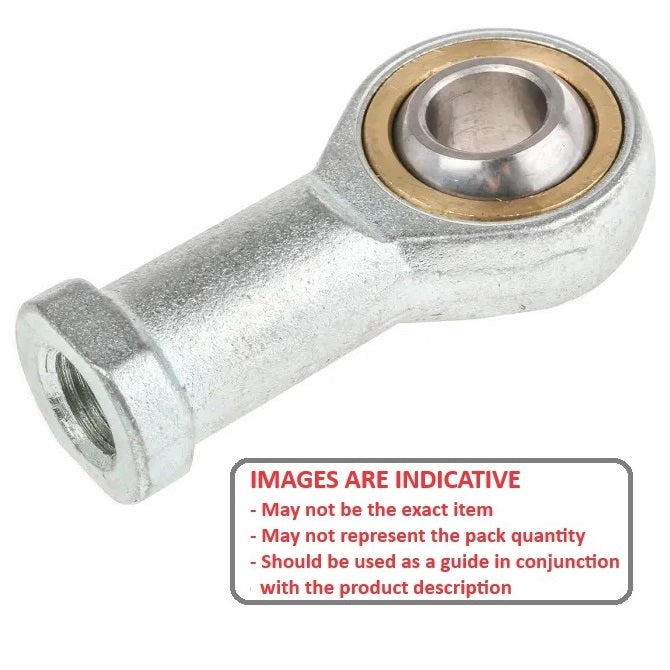

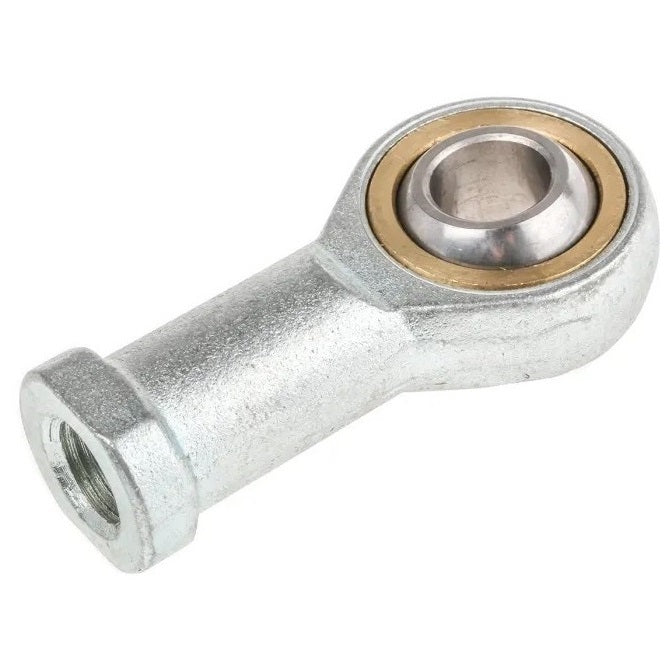

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

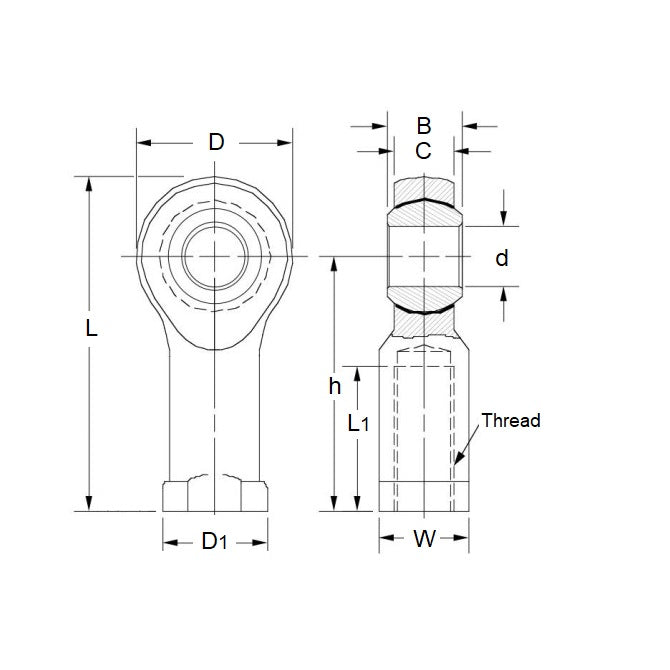

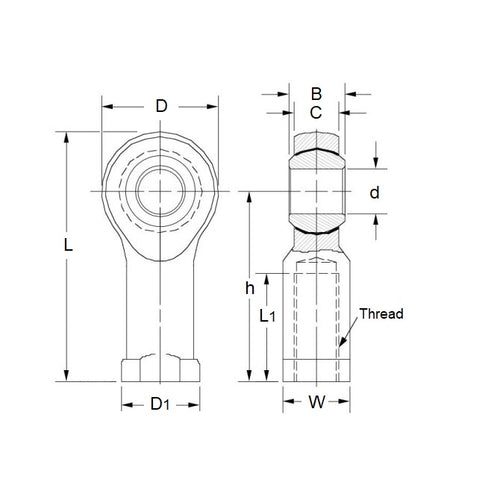

Product Data
- Eye Size : 30 mm
- Overall Length 143.50 mm
- Thread Size M30x2 Right
- Thread Length 56.00 mm
- Head Width 25.00 mm
- Eye Width 37.00 mm
- Head Diameter 67.00 mm
- Centre Height 110.00 mm
- Grease Nipple Yes
- Body Width / Flange Width 41.00 / 50.00 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- RINO® BEF-30-RH
- ASAHI® JAF30
- KWK KF30
- IKO PHS30
- Nachi® PHS-30
- NTN® SFI-30
- BEF30RH
- SFI30
