UFL006N - Datasheet
MBA
Category Information

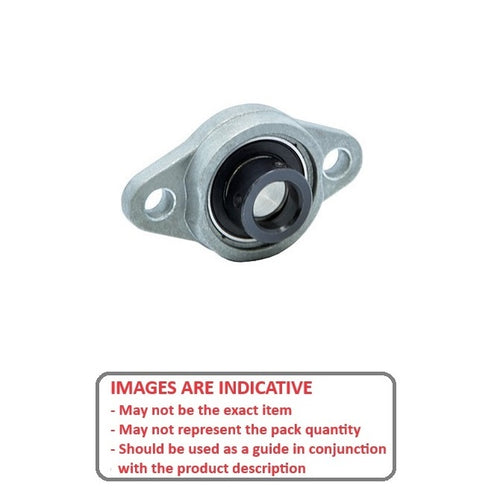

Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - AluminiumAluminium Rigid Flanged 2 Bolt Housing and Bearing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing
- Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
- Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.
Product Data
- Nominal Shaft Size
:
30.0
mm

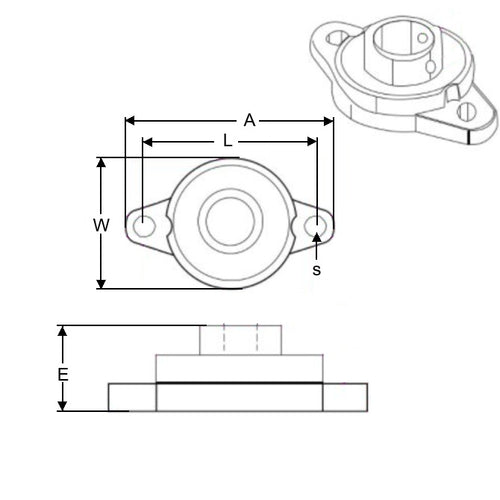

(Equiv. 1.181 in.) - Width (W)
70.0
mm
(Equiv. 2.756 in.) - Overall Length (A)
112.0
mm
(Equiv. 4.409 in.) - Overall Height (E) 29.0 mm
- Bolt Hole Size (s) 13.0 mm
- Bolt Hole Centres (L) 85.0 mm
- Material Aluminium
