IP-150RS - Datasheet
MBA
Category Information

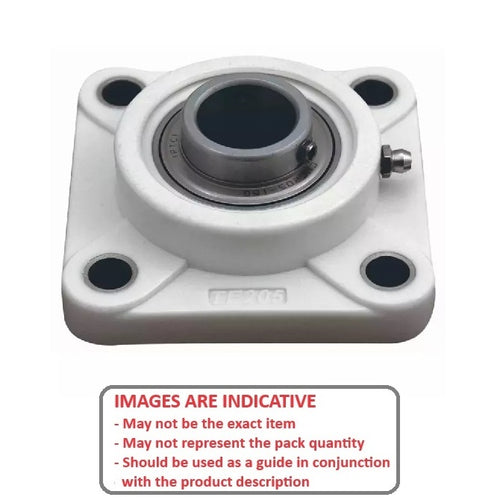

Housing and Bearing Assembly - Flanged 4 Bolt - Rigid - Plastic and StainlessPlastic and Stainless Steel Non Aligning Flanged 4 Bolt Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.
- Food grade.
- Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
- Excellent mechanical, thermal and electrical properties.
- Operational temperature -20 to +100 oC
- Bearings are 440C stainless steel. Bushings and grease fittings are 300 grade stainless steel.

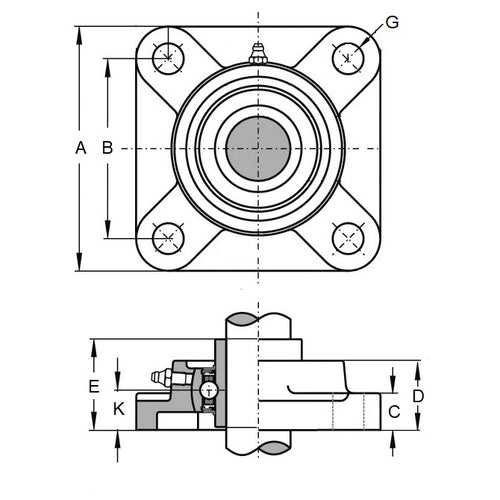

Product Data
- Nominal Shaft Size
:
30.000
mm
(Equiv. 1.181 in.) - Base Height (C)
14.000
mm
(Equiv. 0.551 in.) - Length (A)
108.000
mm
(Equiv. 4.252 in.) - Overall Height (E) 41.300 mm
- Housing Height (D) 32.000 mm
- Bolt Hole Size (G) 11.000 mm
- Material Thermoplastic and Stainless Steel
