PSP-039-025-S2 - Datasheet
MBA
Category Information

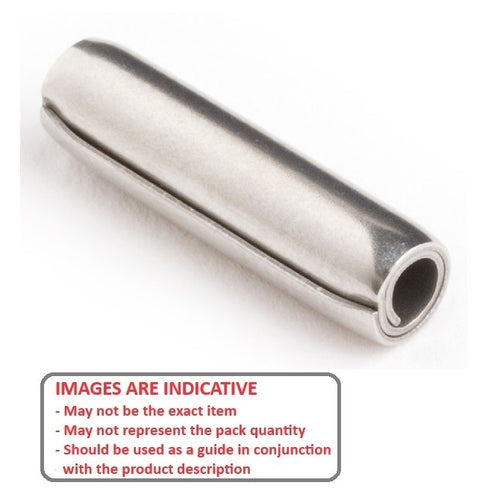

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter : 3.97 mm
- Length
25.40
mm
+/- 0.50
(Equiv. 1 in.) - Drill Size 3.97 - 4.06 mm
- Loose Diameter 4.14 - 4.34 mm
- ISO Standard Duty ASME B18.8.2
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPC3P-156-1000
- NoCor® SPC3P-156-1000
- SPC3P1561000
