R155A-TTS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

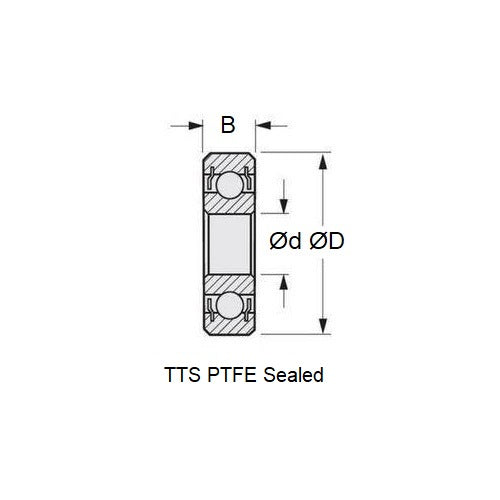

- ID (d)
:
3.969
mm
(Equiv. 0.156 in.) - OD (D)
7.938
mm
(Equiv. 0.313 in.) - Width (B)
3.175
mm
(Equiv. 0.125 in.) - Precision Grade Economy
- Closure Type TTS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R155A
- Limiting Speed 47832.5
- Cage Type Standard
- Static Load Rating KGf 14.2
- Dynamic Load Rating KGf 35.2
- Radii 0.10 mm
- Inner Shoulder (UI) 5.53mm
- Outer Shoulder (UO) 7.30 mm
- Number of Balls 10
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type TTS
- Max Temperature 120 Deg. C
