RCL-038-065-Z - Datasheet
MBA
Category Information

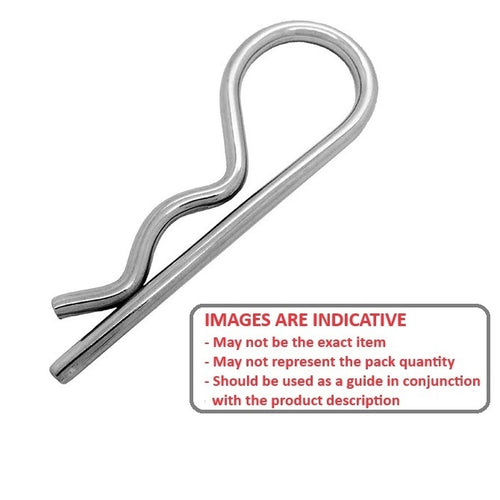

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

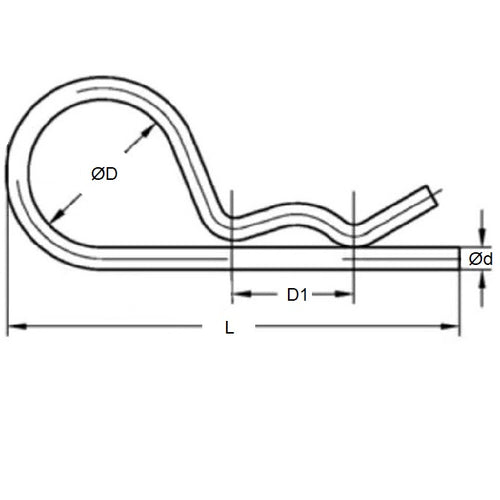

- Wire Thickness (d) : 3.80 mm
- Length (L) 65.0 mm
- Material Zinc Plated
- Drill Hole Size 3.97 mm
- Approx.Inside Eye (D) 17.00 to 19.00 mm
- Shaft Size Range 12.70 to 19.05 mm
- Approx. Bridge Length (D1) 26 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Huyett® BP-2107/D
- NoCor® BP-2107/D
- BP2107/D
