KF095C-063-3L-P - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Female - Through Hole

Through Hole Female Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)

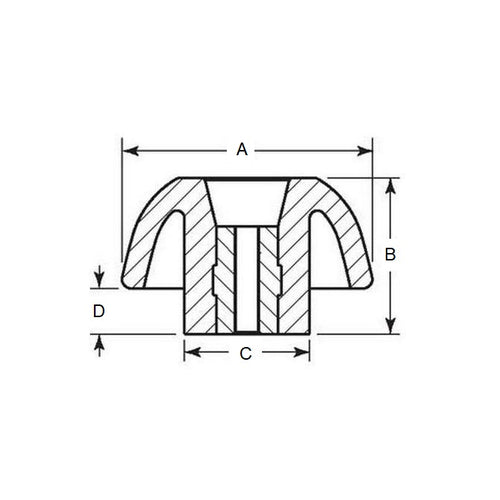

  • Head Diameter (A) 62.99 mm
    (Equiv. 2.48 in.)
  • Thread Length 23.1 mm
    (Equiv. 0.909 in.)
  • Colour Black
  • Hub Diameter (C) 23.11 mm
  • Hub Length (D) 11.94 mm
  • Length (B) 39.12 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • RST-126
  • RST126
View full details

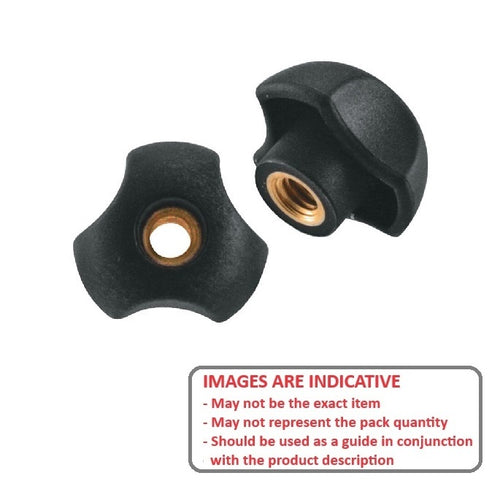

KF095C-063-3L-PDiagramKF095C-063-3L-PImage
