Miniature Bearings Australia
THS095C-044-K-CS-DP - Datasheet
MBA
Category Information

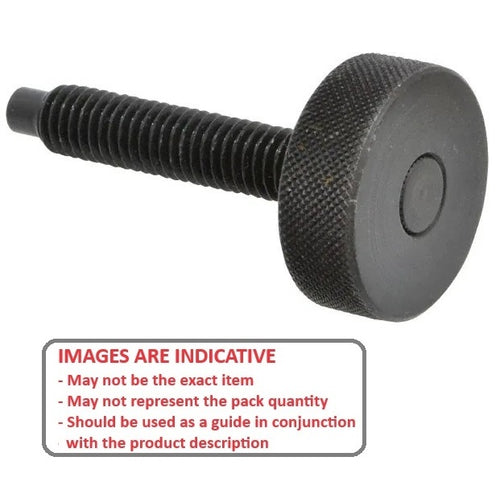

Screws - Thumb - Dog PointDog Point Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

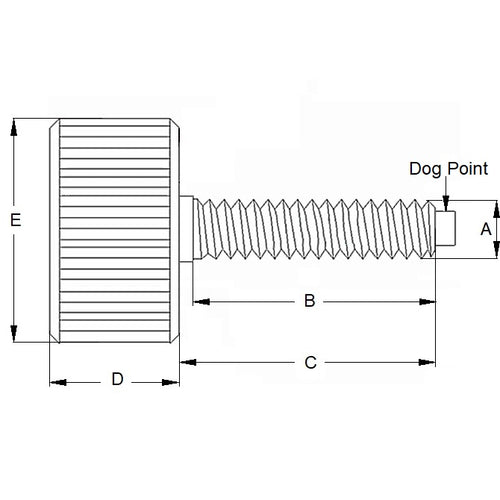

- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Thread Length (B)
44.45
mm
(Equiv. 1.75 in.) - Head Diameter (E) 31.75 mm
- Head Height (D) 11.11 mm
- Finish Black Oxide
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- KHS110
- KHS-110
