PLST-095C-191-HKC-036 - Datasheet
MBA
Category Information

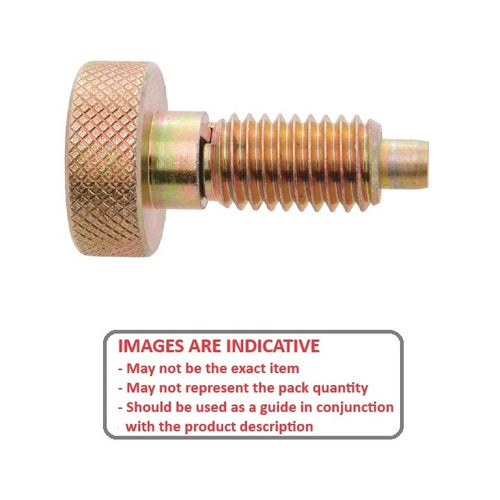

Plungers - Spring - Knurled Handle - Non Locking - SteelSteel Non Locking Knurled Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Thread Length (B)
19.1
mm
(Equiv. 0.752 in.) - Initial Pressure (F1) 4.5 N
- Final Pressure (F2) 35.6 N
- Tip Diameter (D) 4.7 mm
- Tip Length (C) 5.6 mm
- Head Length (F) 12.7
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 84915A47
- PHR-33
- PHR33
