Miniature Bearings Australia
THS095C-038-H-CB - Datasheet
MBA
Category Information

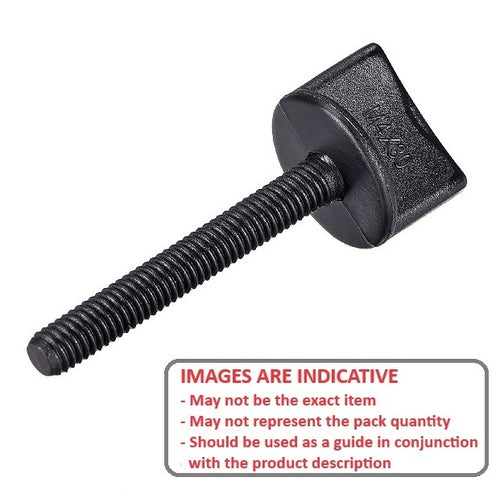

Screws - Thumb - Half TurnHalf Turn Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

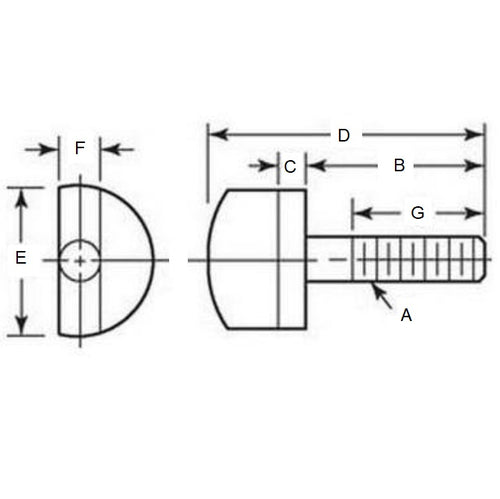

- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Thread Length (G)
38.10
mm
(Equiv. 1.5 in.) - Overall Length (D)
68.26
mm
(Equiv. 2.687 in.) - Head Diameter (E/F) 26.99 / 9.53 mm
- Finish Black Oxide
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- HTS-715
- HTS715
