PLST-095C-191-HKASL-018 - Datasheet
MBA
Category Information

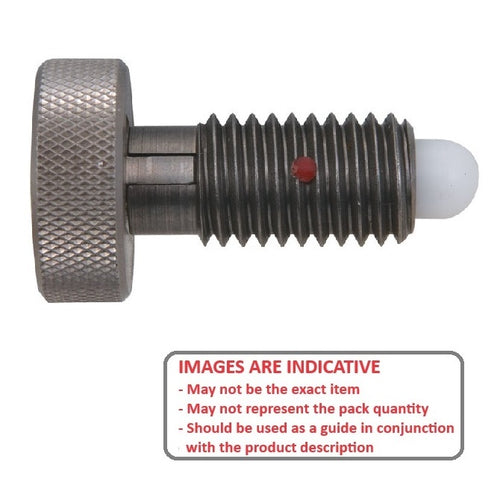

Plungers - Spring - Knurled Handle - Locking - Stainless-AcetalStainless-Acetal Locking Knurled Handle Spring Plungers. Steel body with acetal nose
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

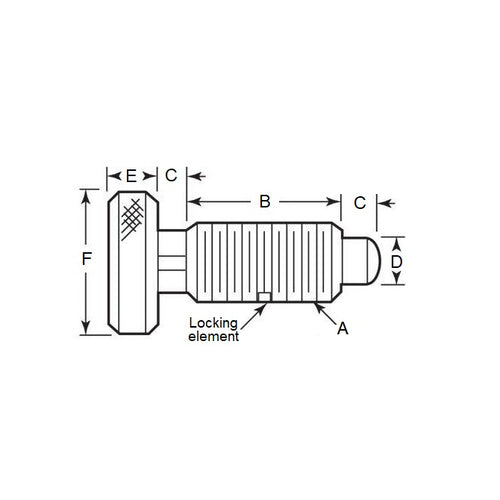

- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Thread Length (B)
19.1
mm
(Equiv. 0.752 in.) - Initial Pressure (F1) 3.3 N
- Final Pressure (F2) 17.8 N
- Tip Diameter (D) 5.5 mm
- Tip Length (C) 5.6 mm
- Head Height (E) 7.9 mm
- Head Diameter (F) 19.1 mm
- Material Stainless Steel Body with Acetal
Product Compliance and Data
Additional Resources
Cross References
- NKP18
- NKP-18
