PLST-095C-270-HLPSL-017 - Datasheet

MBA

Category Information

Plungers - Spring - L Handle - Locking - Stainless-Phenolic

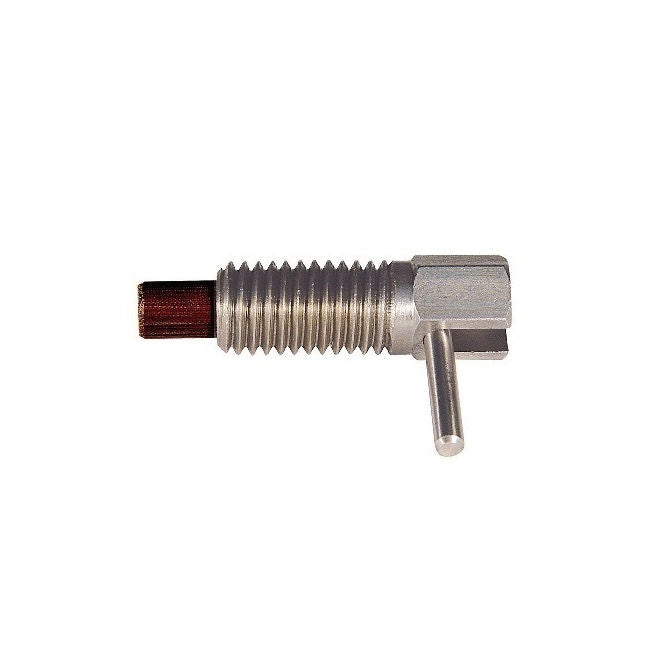

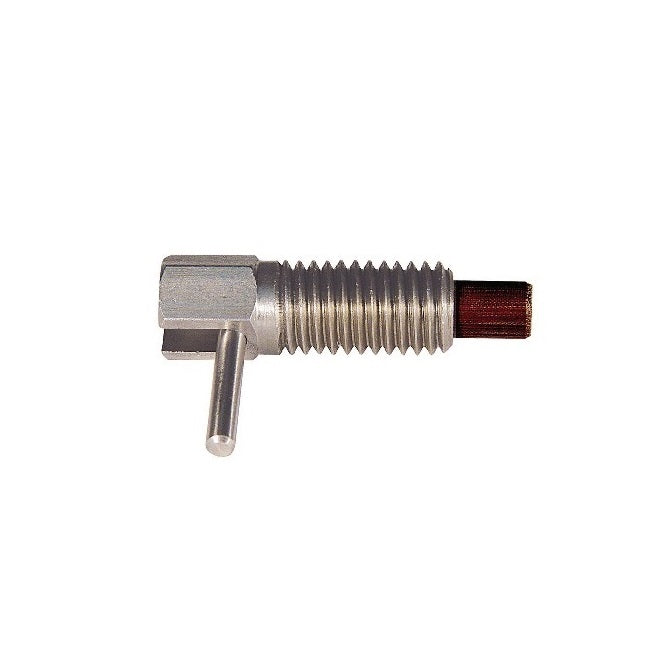

Stainless-Phenolic Locking L Handle Spring Plungers. Stainless body with phenolic nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

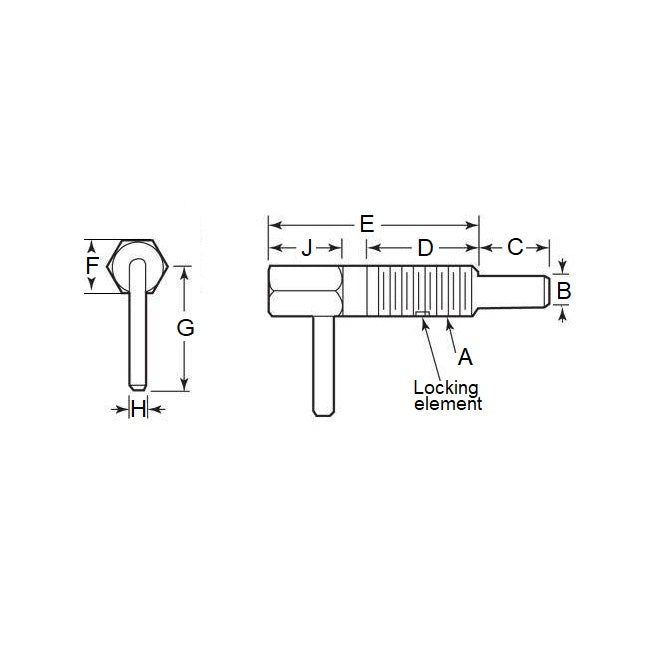

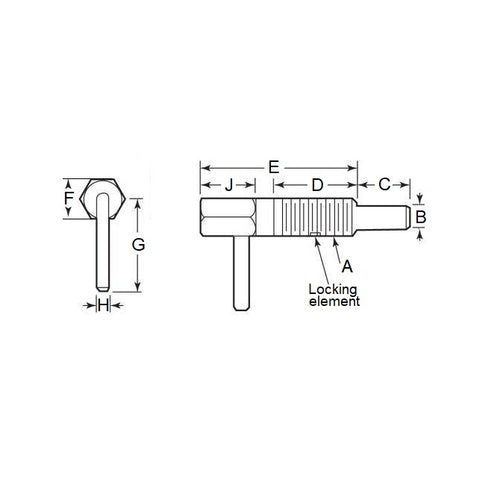

  • Thread Size (A) : 3/8-16 UNC (9.53mm)
  • Thread Length (D) 27.0 mm
    (Equiv. 1.063 in.)
  • Initial Pressure (F1) 3.3 N
  • Final Pressure (F2) 16.7 N
  • Tip Diameter (B) 6.4 mm
  • Tip Length (C) 14.3 mm
  • Handle Length (G) 33.3 mm
  • Handle Diameter (H) 3.6 mm
  • Head Length (J) 9.5 mm
  • Material Stainless Steel Body with Phenolic
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • FR6
