THS095C-025-W-CS - Datasheet
MBA
Category Information

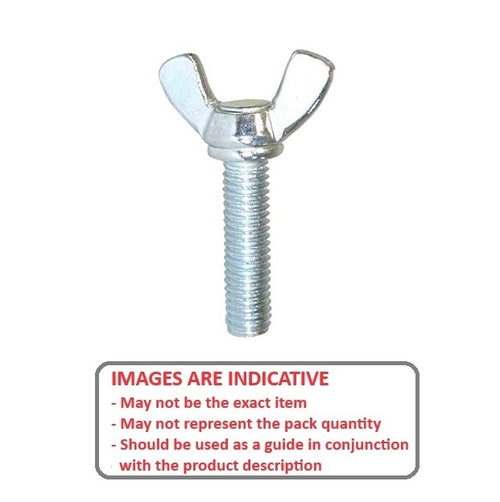

Screws - Thumb - Wing - StandardStandard Wing Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

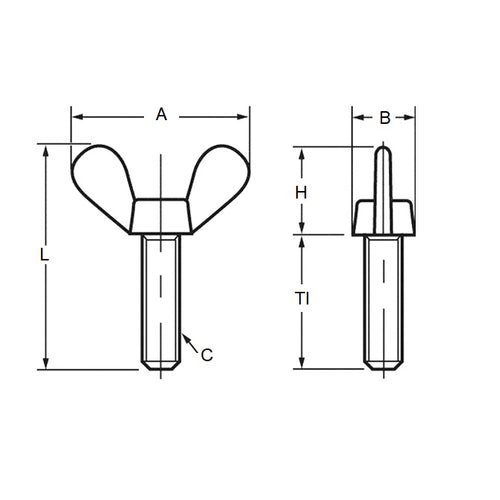

- Thread Size (C) : 3/8-16 UNC (9.53mm)
- Thread Length (Tl)
25.40
mm
(Equiv. 1 in.) - Overall Length (L)
47.63
mm
(Equiv. 1.875 in.) - Head Diameter (A) 46.04 mm
- Head Height (H) 22.23 mm
- Shoulder Diameter (B) 15.88 mm
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MIT73
- MIT-73
