NT095C-BL-CZ - Datasheet

MBA

Category Information

Nuts - Blind - Standard

Standard Blind Nuts. Blind nuts - Tee nuts.

  • Put steel threads in soft materials like wood without counterboring.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Flange Diameter 25.4 mm
    (Equiv. 1 in.)
  • Barrel Height 11.1 mm
    (Equiv. 0.437 in.)
  • Type Tee Nut
  • Material Steel Zinc Plated
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 90975A031
  • WN135
  • WN-135
View full details

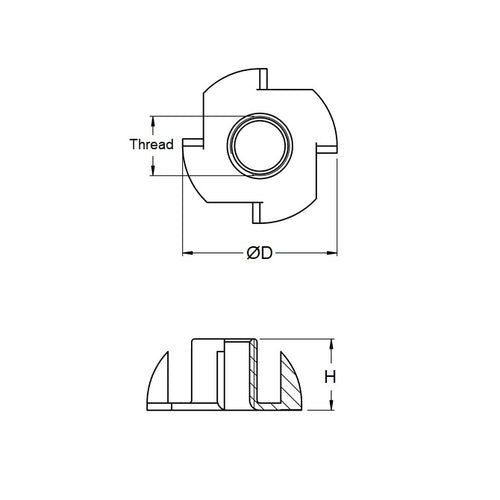

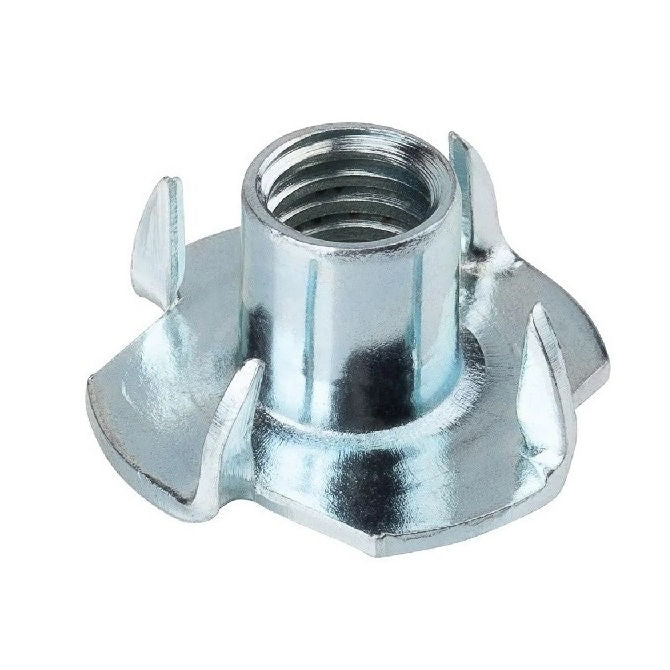

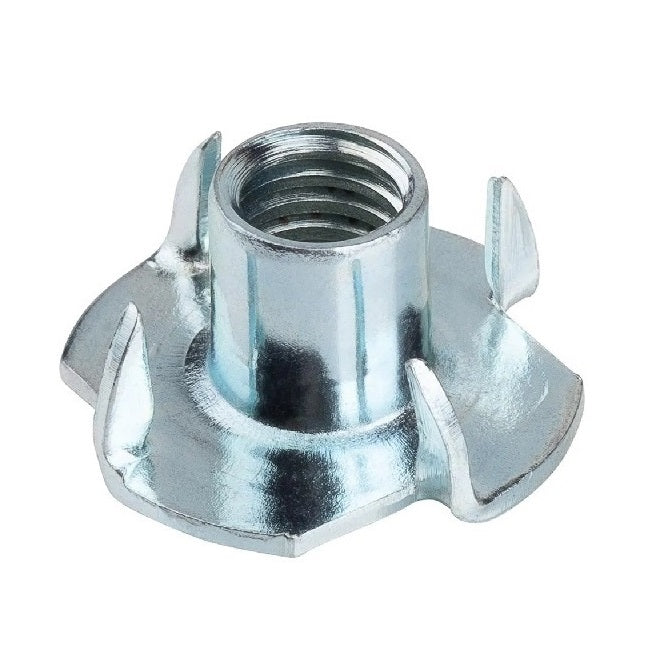

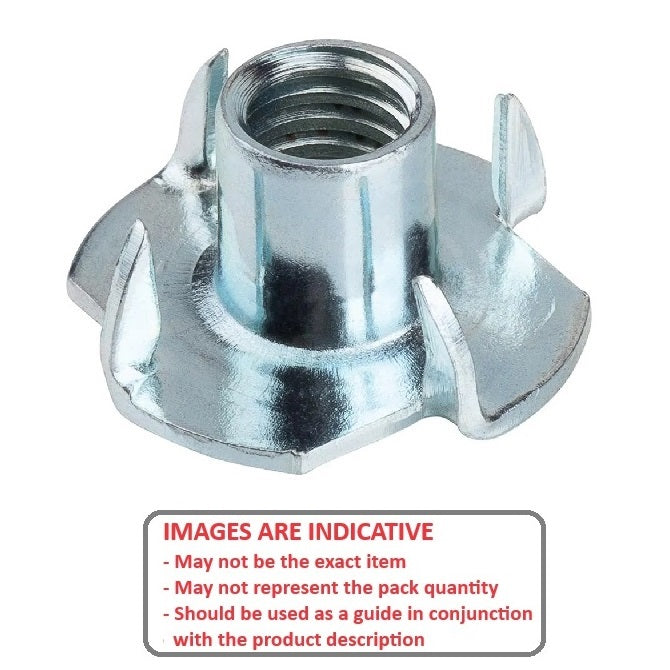

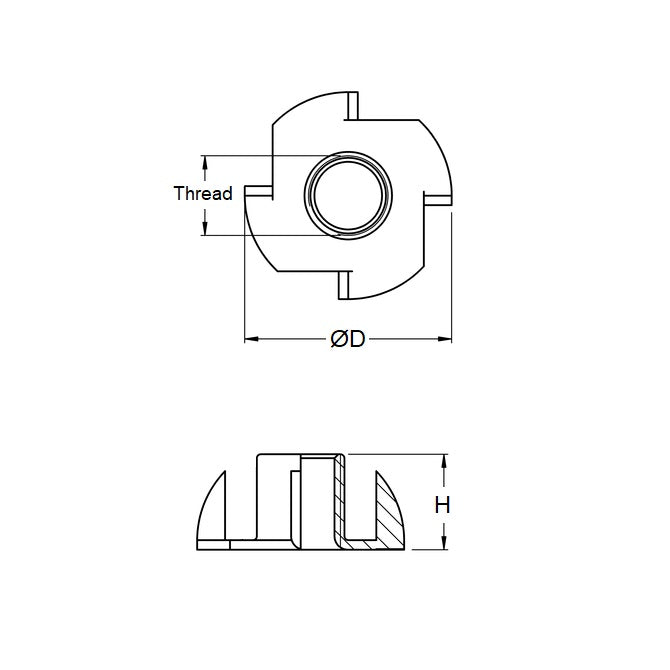

NT095C-BL-CZDiagramNT095C-BL-CZImage
