SS095C-0191-AS-BT - Datasheet

MBA

Category Information

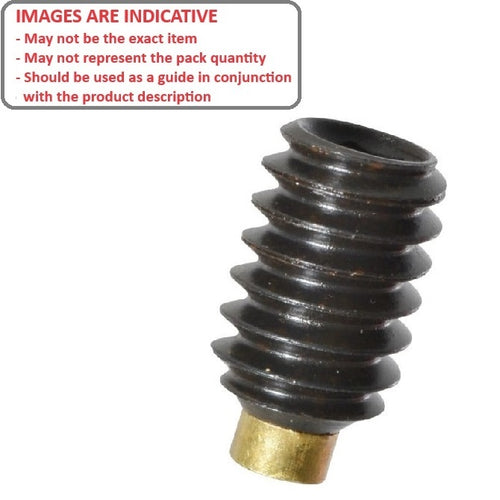

Socket Set Screws - Brass Tipped - Alloy Steel

Alloy Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.

  • Socket driven grub screws that uses a brass tip to prevent damage to the shaft it secures.
  • Brass tip provides a gentler contact point than a pointed or cup-point set screw, making it ideal for applications like securing gears to shafts where protecting the component's surface from marring or wear is crucial.
  • Often used in precision mechanical and electrical assemblies where a secure, non-damaging hold is required.

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Thread Length (L) 19.1 mm
    (Equiv. 0.752 in.)
  • Type Brass Tipped
  • Overall Length (L + L1) 21.4 mm
  • Tip Diameter (d) 4.8 mm
  • Tip Length (L1) 2.3
  • Pitch 1.588 mm
  • Threads Per Inch 16 TPI
  • Finish Black Oxide
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91381A622
  • Small Parts BSAS-3816-12
  • BSAS381612
  • BTS250
  • BTS-250
