TPC-095C-B-H - Datasheet
MBA
Category Information
Tools - Threading - Hand Taps - High Speed - Steel IndividualSteel Individual High Speed Hand Taps Threading Tools. High Speed Steel Short Machine Flute Taps. starting from M1 and 0-90 UNF. Many unusual sizes - M1.2, M1.4, M1.6, M1.7, BA Sizes, 2-56 and more. Sutton - PN - Bordo.
- An expanded range may be available on special order. Please enquire.
- High Speed Steel (HSS) Short Machine taps
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

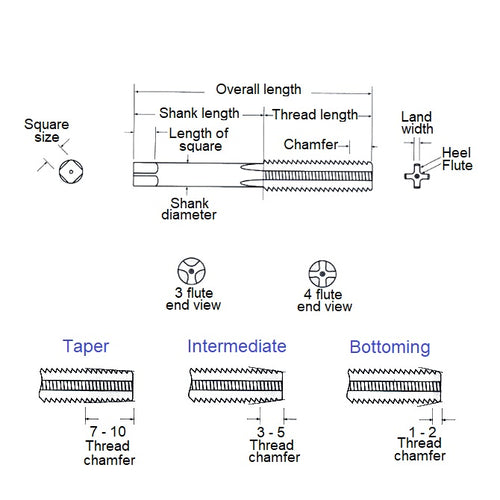

- Thread Size : 3/8-16 UNC (9.53mm)
- Pitch in mm / Threads Per Inch 1.588 mm / 16 TPI

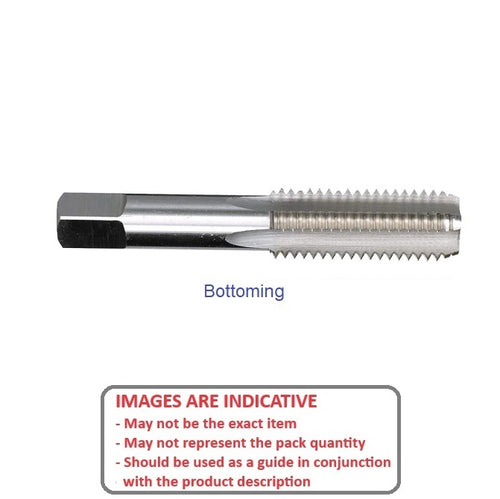

- Type Bottoming
- Drill Size Range 8.00 mm
- mm 7.26
- No. of Flutes 4 Square Shank Dia.
- GH Limit / D Limit H2
- Material High Speed Carbon Steel - Ground Thread
Product Compliance and Data
Additional Resources
Cross References
- TU203498
- TU-TT90416
- TU-203498
- TUTT90416
