PLST-095C-159-HLPCL-006 - Datasheet

MBA

Category Information

Plungers - Spring - L Handle - Locking - Steel-Phenolic

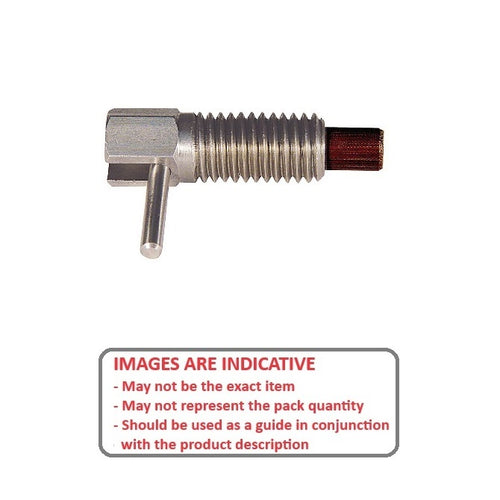

Steel-Phenolic Locking L Handle Spring Plungers. Steel body with phenolic nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

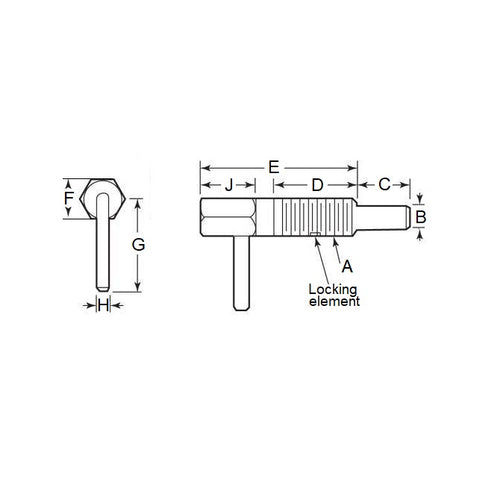

Product Data

  • Thread Size (A) : 3/8-16 UNC (9.53mm)
  • Thread Length (B) 15.9 mm
    (Equiv. 0.626 in.)
  • Initial Pressure (F1) 1.1 N
  • Final Pressure (F2) 5.6 N
  • Tip Diameter (B) 6.4 mm
  • Tip Length (C) 7.9 mm
  • Handle Length (G) 19.1 mm
  • Handle Diameter (H) 3.6 mm
  • Head Length (J) 9.5 mm
  • Material Steel Body with Phenolic
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • FR10
