PLST-095C-270-HLASL-017 - Datasheet
MBA
Category Information

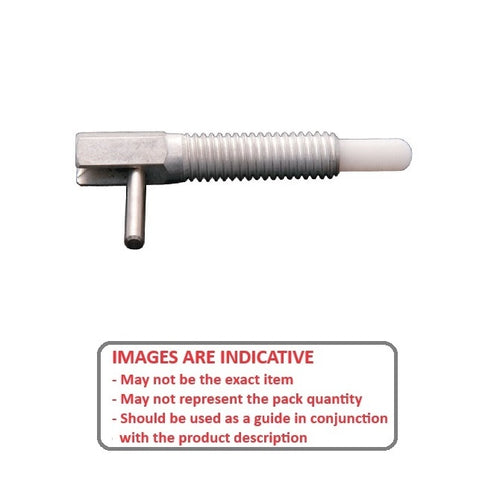

Plungers - Spring - L Handle - Locking - Stainless-AcetalStainless-Acetal Locking L Handle Spring Plungers. Stainless body with acetal nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

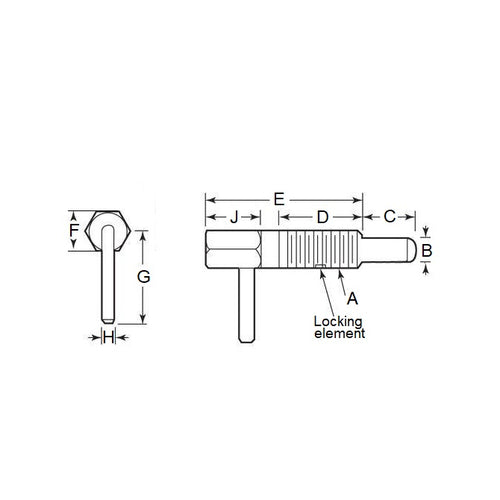

Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Thread Length (D)
27.0
mm
(Equiv. 1.063 in.) - Initial Pressure (F1) 0.3 N
- Final Pressure (F2) 16.7 N
- Tip Diameter (B) 6.4 mm
- Tip Length (C) 14.3 mm
- Handle Length (G) 23.8 mm
- H 3.6 mm
- Head Length (J) 17.5 mm
- Material Stainless Steel Body with Acetal
Product Compliance and Data
Additional Resources
Cross References
- 2372A47
- FRD-6
- FRD6
