IN-TP-095C-10-A-C - Datasheet
MBA
Category Information

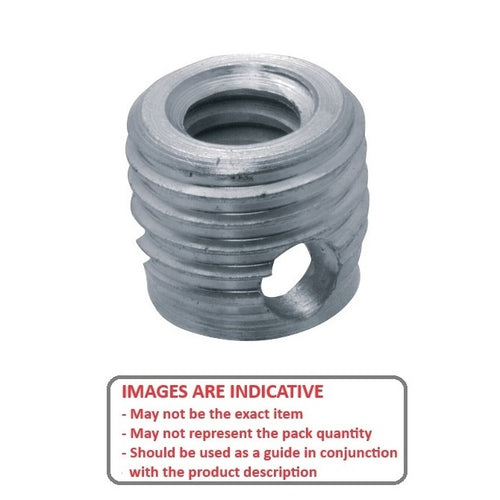

Inserts - Self Tapping - For Aluminium - SteelSteel For Aluminium Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut their own threads into the wall of permanent installations.
- Provides a strong wear and vibration resistant thread.
- Low volumes can be installed by winding in with a bolt through the threaded centre. Large volumes can be installed with hand installation tools (Sold Seperately)
- Hole sizes are reference only. Can variey on batchs. Optimum hole size is to be determinded through experimentation.
- A 60o countersink is required for flush mounting.
- Can be used in Aluminium, aluminium alloy or magnesium. Made from steel with zinc chromate finish.
Product Data

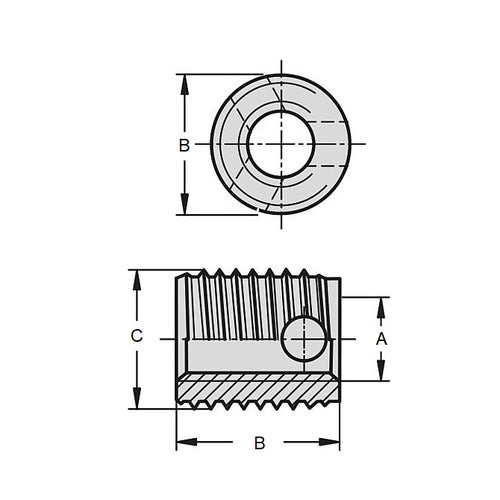

- Internal Thread : 3/8-16 UNC (9.53mm)
- Rec. Hole Diameter
13.1
mm
(Equiv. 0.516 in.) - Length (L)
10.0
mm
(Equiv. 0.394 in.) - Outside Diameter (B) 14.00 mm
- Required Hole Depth 13.00 mm
- Material to be used in Aluminium, Aluminium Alloy, Magnesium and Mild Steel
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- STI360
- STI-360
- INTP095C10AC
