PSP-035-026-C - Datasheet
ENQUIRE
Category Information

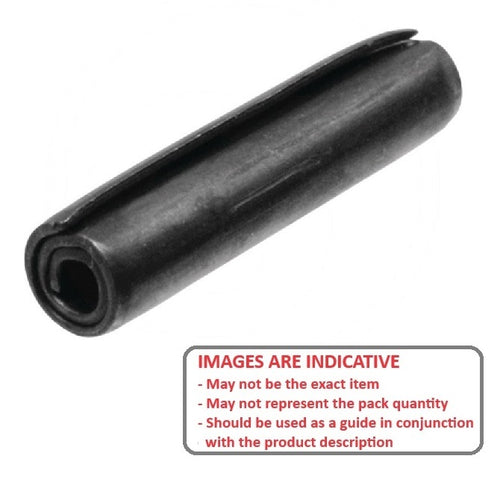

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Hole Diameter : 3.50 mm
- Length
26.00
mm
+/- 0.50
(Equiv. 1.024 in.) - Drill Size 3.50 - 3.62 mm
- Loose Diameter 3.67 - 3.84 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness RC 46-53 (HV 420 to 545)
- Double Shear Strength Min. 7 Kn
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- SEP3526
- SEP3.5-26
