PSP-035-016-S2 - Datasheet
MBA
Category Information

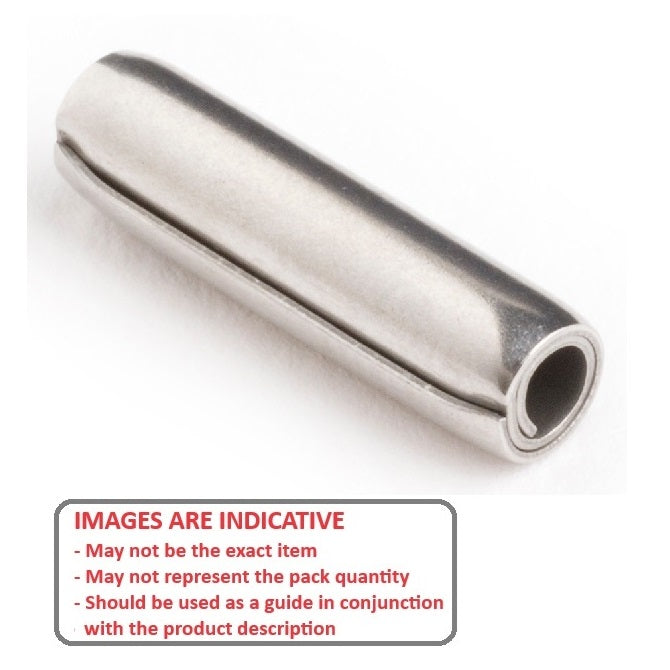

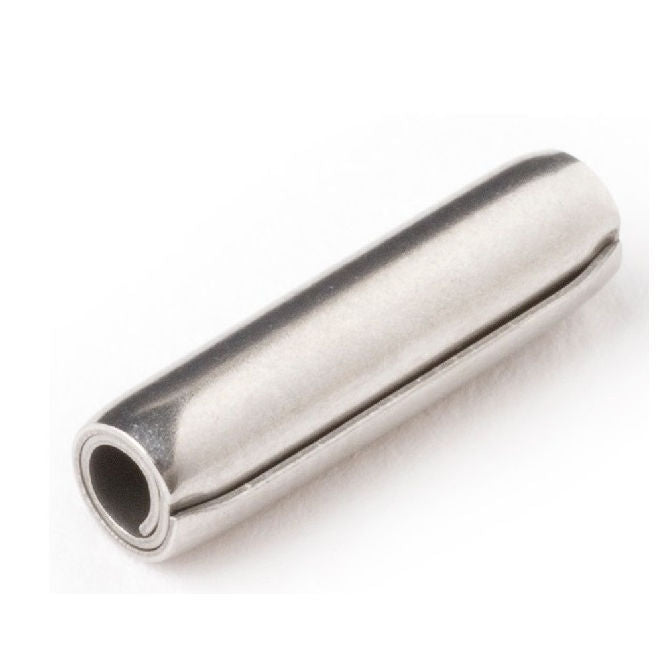

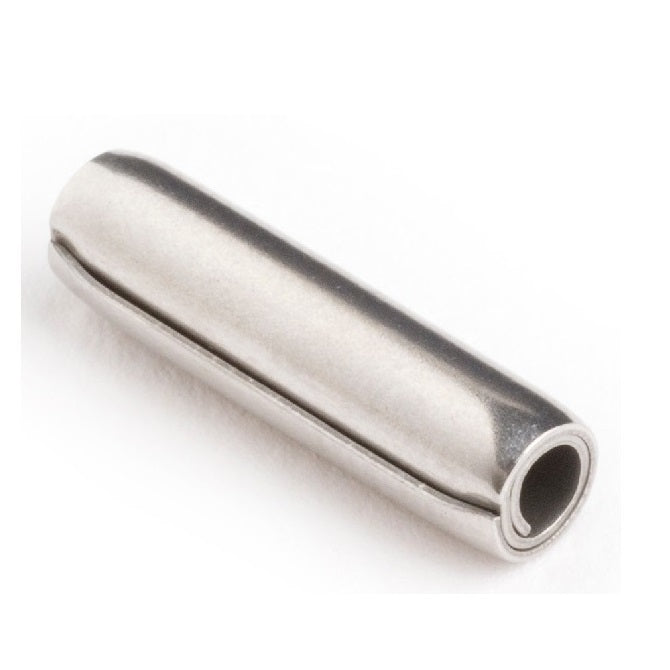

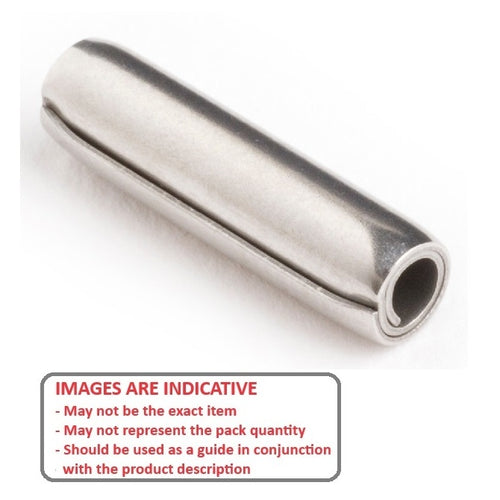

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

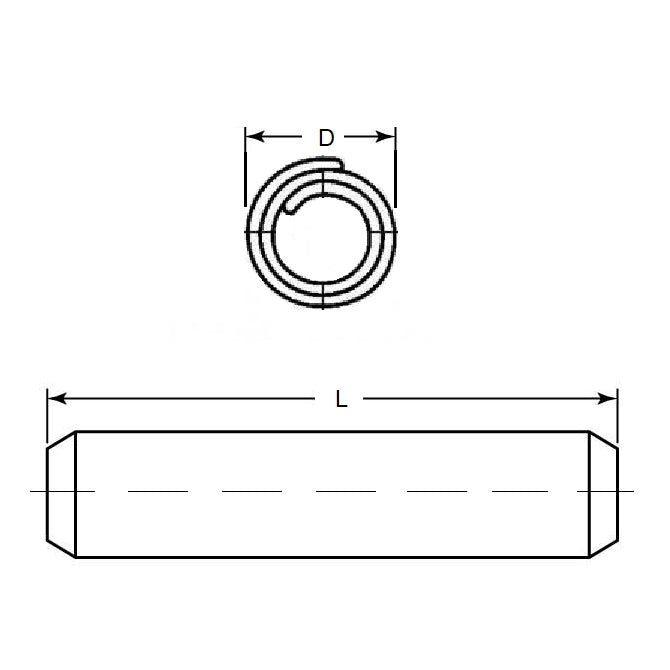

- Nominal Hole Diameter
:
3.50
mm
(Equiv. 0.138 in.) - Length
16.00
mm
+/- 0.50
(Equiv. 0.63 in.) - Drill Size
3.50 - 3.62
mm
(Equiv. 0.138 in.) - Loose Diameter 3.67 - 3.84 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- EP3.5-16
- EP3516
