REM-030-R-CB - Datasheet
MBA
Category Information

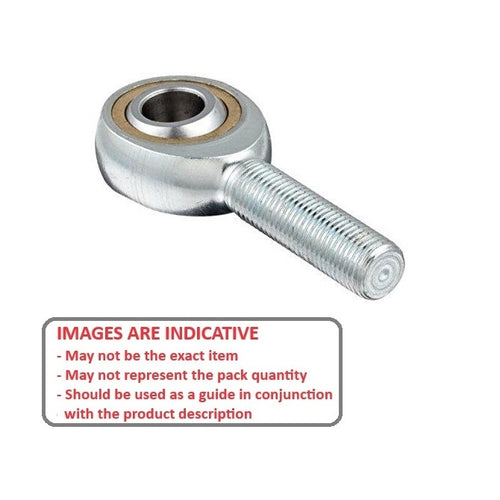

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

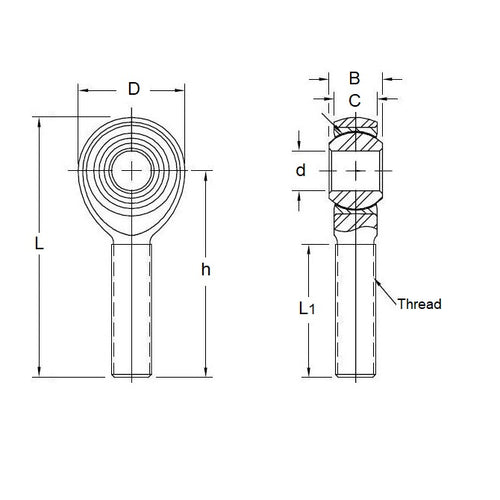

Product Data
- Eye Size (d1)
:
3
mm
(Equiv. 0.118 in.) - Overall Length (L)
33.00
mm
(Equiv. 1.299 in.) - Thread Size M3x0.5 Right
- Min. Thread Length (l2) 15.00 mm
- Head Width (W) 4.50 mm
- Eye Width (W1) 6.00 mm
- Head Diameter (D) 12.00 mm
- Centre Height (l1) 27.00 mm
- Grease Nipple No
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- IKO POS3
- Nachi POS-3
- PR-3E
- PR3E
