PSP-032-010-S2 - Datasheet
MBA
Category Information

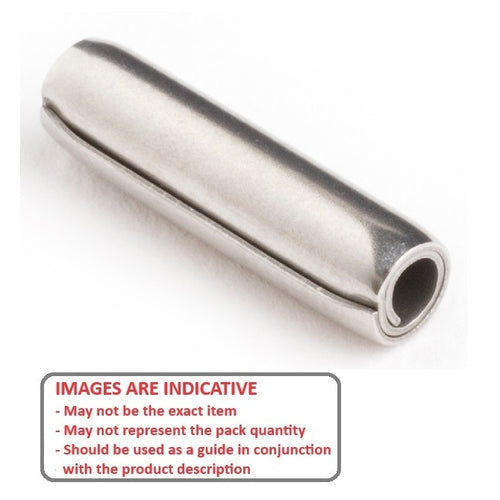

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter : 3.18 mm
- Length
9.53
mm
+/- 0.25
(Equiv. 0.375 in.) - Drill Size 3.18 - 3.28 mm
- Loose Diameter 3.33 - 3.51 mm
- ISO Standard Duty ASME B18.8.2
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPC3P-125-0375
- NoCor® SPC3P-125-0375
- SPC3P1250375
