W0032-T-007-007-WC-S2 - Datasheet
MBA
Category Information

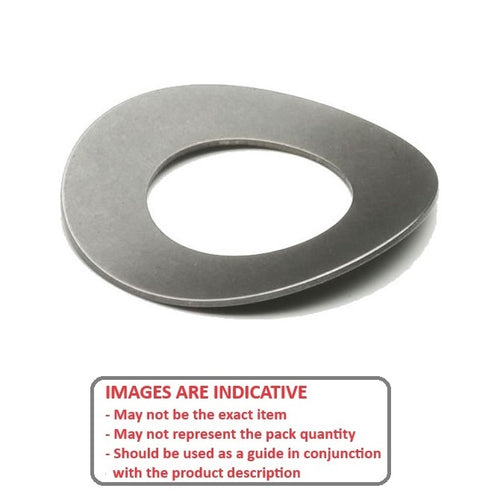

Washers - Spring - Curved - Stainless SteelStainless Steel Curved Spring Washers. Stainless steel, curved selection.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.
- ID and OD are long axis dimensions
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

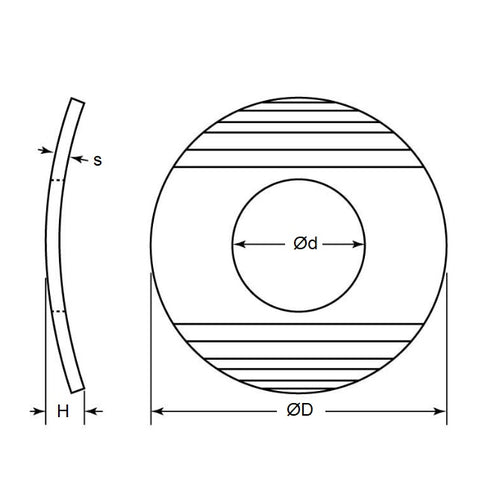

- Nominal Inside Diameter (B)
:
3.18
mm
(Equiv. 0.125 in.) - Nominal Outside Diameter (A)
6.40
mm
(Equiv. 0.252 in.) - Nom. Height (C)
0.71
mm
(Equiv. 0.028 in.) - Thickness (D) 0.10 mm
- Info Made In USA
- Type Curved DIN 137 Type A
- Nominal Screw Size M3, 5-40, 5-44, 1/8
- Actual ID (Ref) 3.4 mm
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor CW-125-004-SS
- U125-0075-S
- U1250075S
- CW125004SS
