K-0318-0318-3810B-Z - Datasheet
ExaktKey
Category Information

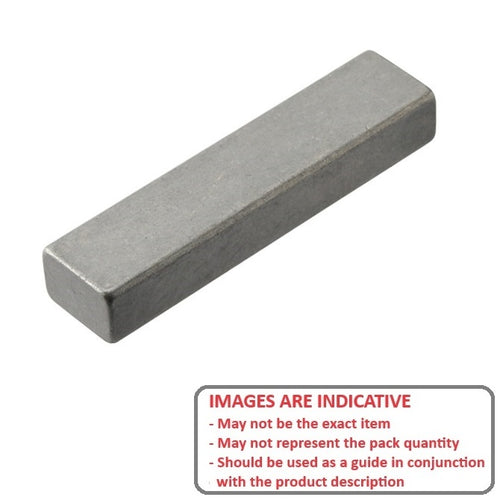

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

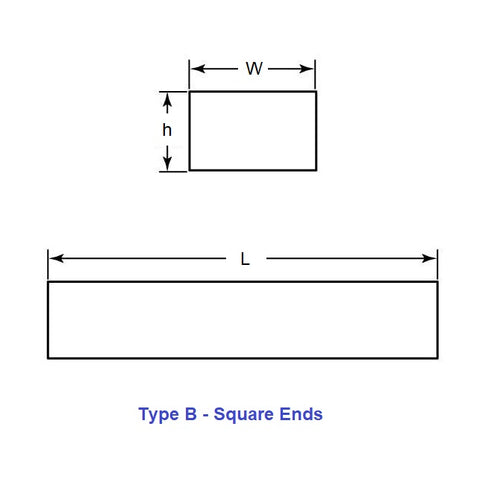

- Width (W)
:
3.18
mm
+ 0 / - 0.051
(Equiv. 0.125 in.) - Height (h)
3.18
mm
+ 0 / - 0.051
(Equiv. 0.125 in.) - Length (L)
38.10
mm
+/ - 0.25
(Equiv. 1.5 in.) - Finish Zinc Electroplate
- Tolerance Type Standard
- End Type B (Square Ends)
- Material Carbon Steel C45 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3101250125-1500
- 31012501251500
