CCE-00318-B - Datasheet

MBA

Product Data

• Shaft Diameter (Ds) : 3.18 mm
  (Equiv. 0.125 in.)
• Clip Thickness (T) 0.25 mm _{+/- 0.038}
  (Equiv. 0.01 in.)
• Groove Dia. (Dg) 2.97 mm _{+/- 0.025}
  (Equiv. 0.117 in.)
• Approx. Loose Circlip ID (A) 2.84 mm
• Groove Width (W) 0.30 mm
• Clearance on Shaft (C1) 5.59 mm
• Clearance in Groove (C1) 5.44 mm
• Min. Lug Diameter (h) 0.61 mm
• Min. Extension (n) 0.36
• Standard MIL-16624

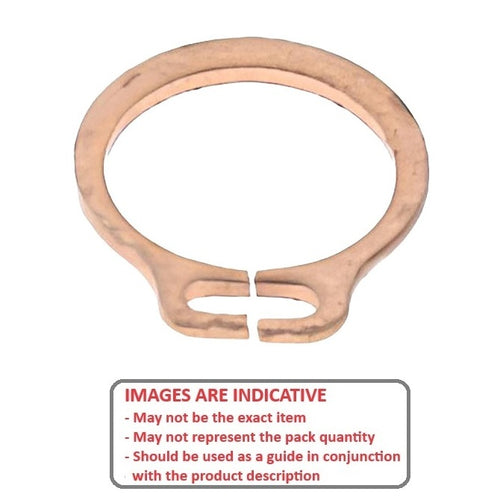

• Material Beryllium Copper

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Anderton and Seeger Cross Reference PDF

• Circlips PDF Catalogue

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Seeger A1-8X.011IN
• Seeger A1-8X0.011IN.
• Small Parts RE-2
• NoCor SH-012
• NoCor SH-012-BC
• A18X0011IN
• A18X011IN
• N14000012BC
• N1400-0012-FDS
• N14000012FDS
• N1400-0012BC
• SH012
• SH012BC
• RE2
• A9Q27012
• A9Q27-012
