PLBP-032-064-CS-011 - Datasheet

MBA

Product Data

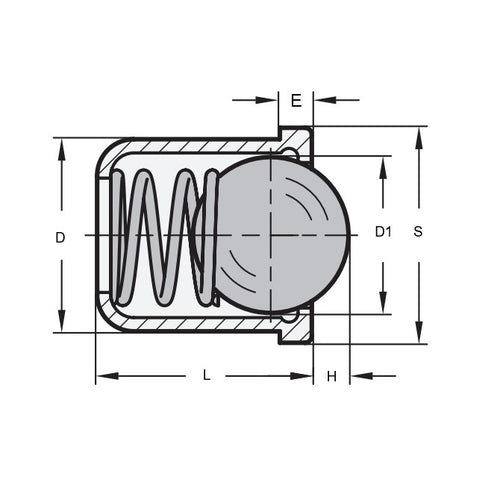

• Body Diameter (D) : 3.18 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.125 in.)
• Length (L) 6.4 mm
  (Equiv. 0.252 in.)
• Initial Pressure (F1) 3.3 N
• Final Pressure (F2) 11.1 N
• Ball Diameter (D1) 2.4 mm
• Ball Height (H) 0.9 mm
• Shoulder Diameter (S) 4.8 mm
• 4.8
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Spring Plungers

• Threaded Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 84835A41
• PFB-48
• PFB48
