KW-032-127-S3 - Datasheet
ExaktKey
Category Information

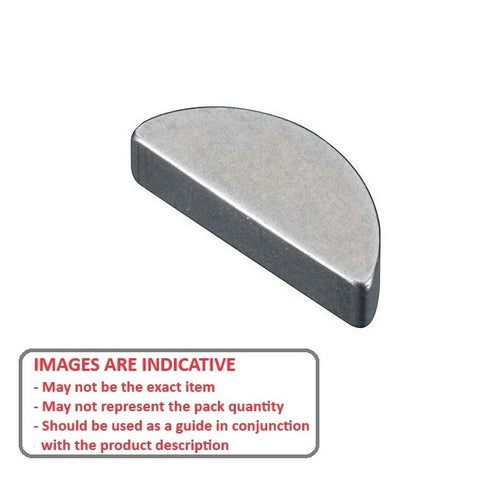

Keys - Woodruff - 303 Stainless Steel303 Stainless Steel Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

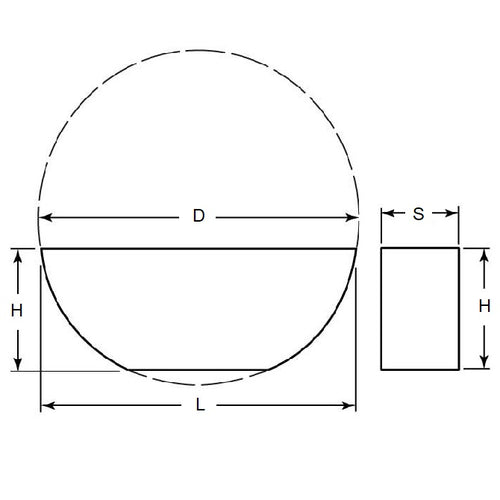

- Thickness (S)
:
3.18
mm
+/- 0.025
(Equiv. 0.125 in.) - Basis Diameter (D)
12.70
mm
+/- 0.250
(Equiv. 0.5 in.) - Approx. Height (H)
5.2
mm
(Equiv. 0.205 in.) - Approx. Length (L) 12.45 mm
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- WOODRUFF 404-SS
- NoCor WKS-003
- WKS003
- 404SS
- A9X490416
- A9X49-0416
