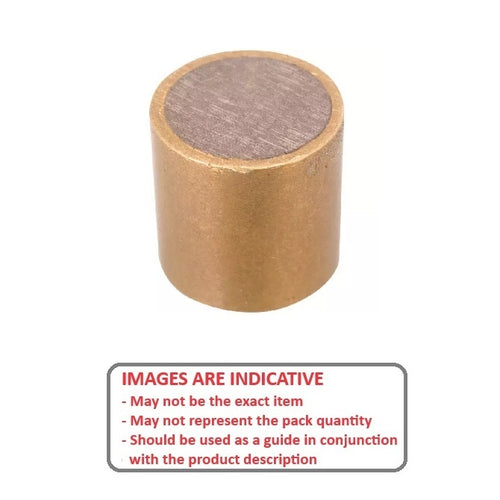

MAG-D-03-006-NS - Datasheet
MBA
Category Information
Magnets - Rare Earth - ShieldedShielded Rare Earth Magnets. Insulator shield prevents loss of magnetic flux when inserted into steel components or fixtures
- Shielded magnets supply holding forces in limited areas of steel tools, dies and fixtures
Product Data

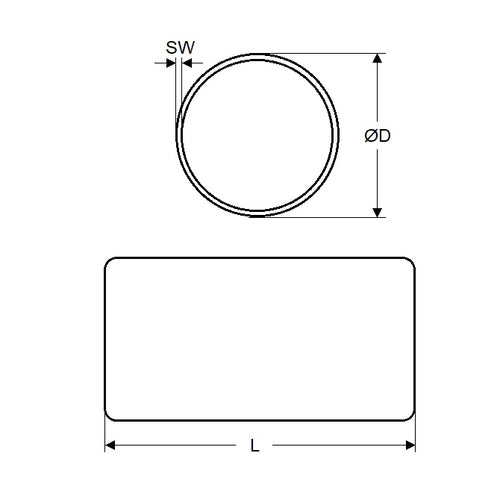

- Diameter
:
3.18
mm
+ 0.0 / - 0.13
(Equiv. 0.125 in.) - Length
6.35
mm
+ 0.0 / - 0.381
(Equiv. 0.25 in.) - Side Wall Thickness 0.05 mm
- Max Pull 0.09 kg
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® IM-27
- IM27
