DP032-010-316-1 - Datasheet
NoCor
Category Information

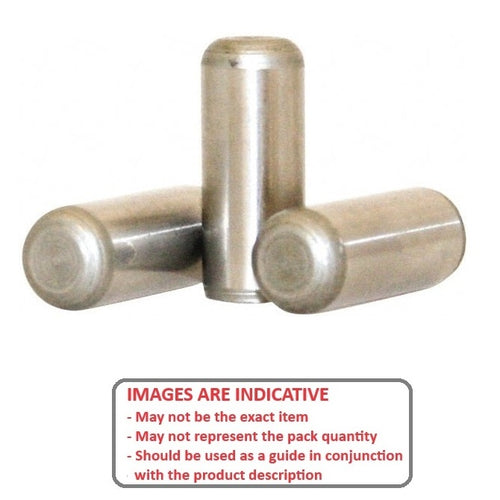

Pins - Dowel - Standard - Chamfered Ends - 316 Stainless316 Stainless Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - 316 Grade - Based on DIN6325, ISO2338, ISO 8734
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
- Diameter (D)
:
3.175
mm
+ 0.004 / + 0.012
(Equiv. 0.125 in.) - Length (L)
9.53
mm
+/- 0.254
(Equiv. 0.375 in.) - Approx. Overall Length
9.53
mm
+/ - 0.254
(Equiv. 0.375 in.) - Type 1 (Chamfer One End)
- Chamfer 0.50 x 15 Deg
- Standard DIN 6325
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWS6-125-0375
- DOWS61250375
