SWR2-5A-ZZ-MC3 - Datasheet
MBA
Category Information

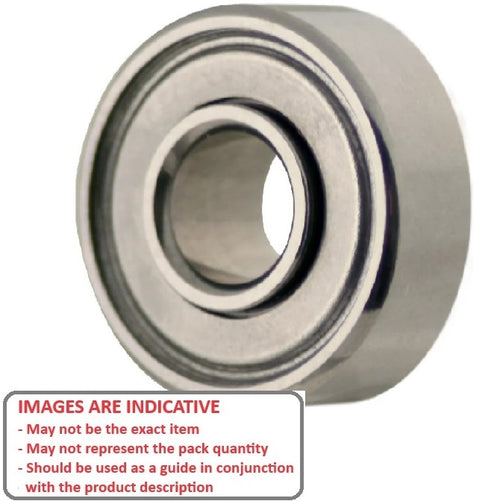

Bearings - Single Row Ball - Unflanged - Precision - Extended InnerExtended Inner Precision Unflanged Single Row Ball Bearings. Single row radial ball bearings with extended inner ring (wide inner ring).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
Product Data

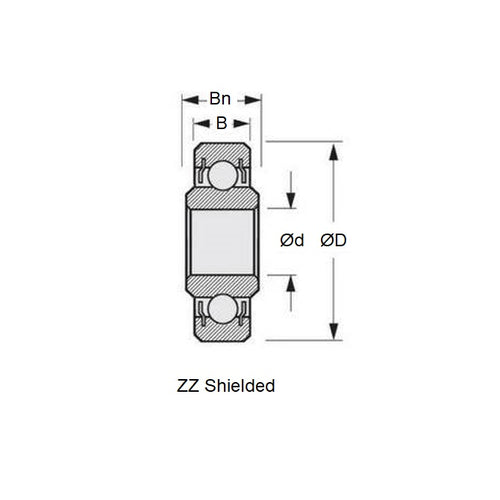

- ID (d)
:
3.175
mm
+ 0.000 / - 0.0075
(Equiv. 0.125 in.) - OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.) - Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.) - Inner Ring Width (Bn) 4.366 mm
- Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial with Extended Inner
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part WR2-5A
- Limiting Speed 60000
- Cage Type Standard
- Static Load Rating KGf 18
- Dynamic Load Rating KGf 57
- Radii 0.10 mm
- Inner Shoulder (UI) 4.35mm
- Outer Shoulder (UO) 7.10 mm
- Number of Balls 6
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- 57155K383
- MPB S518CHHE
- MPB S518RHHE
- GRW SE1-8A-2Z
- ISO SRW25ZZ
- ISO SRW2-5-ZZ
- NHBB SSR1-518-ZZEE
- NHBB SSR2-5PPEE
- Shielded SWR2 / 4
- ADR WLX1-8-ZZ
- Stainless Alternative WR25AZZMC3
- Stainless Alternative WR2-5A-ZZ-MC3
- WLX18ZZ
- SWR2-5A-ZZMC3
- SWR25AZZMC3
- SRW2-5SS
- SRW25SS
- SSR25PPEE
- SSR1518ZZEE
- SS-R1-518-ZZEE
- DD-R1-518-ZZEE
- DMB-40
- DMB40
- DDR1-518-ZZEE
- DDR1518ZZEE
- SE18A2Z
- WR2-5A Basic Size Ref
