W0032-T-006-008-L-CZ - Datasheet
MBA
Category Information

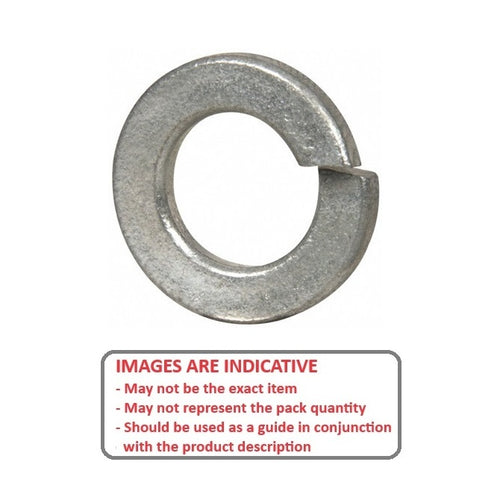

Washers - Lock - Split - SteelSteel Split Lock Washers. Split type. Plain and zinc plated steel selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data

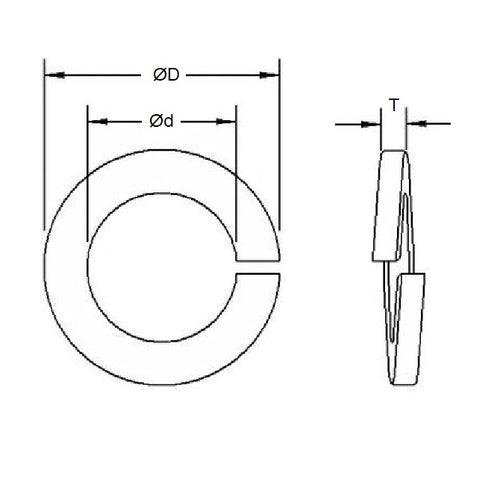

- Nominal Inside Diameter
:
3.18
mm
+ 0.3 / - 0.0
(Equiv. 0.125 in.) - Outside Diameter
6.2
mm
(Equiv. 0.244 in.) - Material Thickness (T)
0.80
mm
(Equiv. 0.031 in.) - Nominal Screw Size M3, 5-40, 5-44, 1/8
- Specs DIN 127 B
- Actual ID (Ref) 3.2 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- RS Components 0526805
- WASCA 1000403
- WASCA 1000834
- 90073A006
- 91102A725
- MicroFast LW05
- WASCA WSPSZNP18
- WASCA WSPSZNP3
