DP032-032-303-2 - Datasheet
NoCor
Category Information

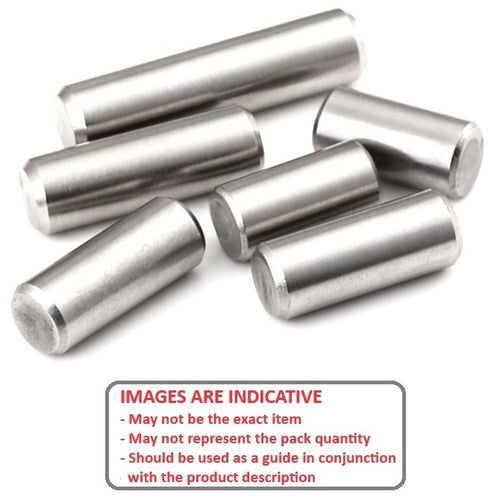

Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless303-304 Stainless Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - 303/304 Grade Stainless - Based on DIN6325, ISO2338, ISO 8734
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
- Diameter (D)
:
3.175
mm
+ 0.004 / + 0.012
(Equiv. 0.125 in.) - Length (L)
31.75
mm
+/- 0.500
(Equiv. 1.25 in.) - Approx. Overall Length
31.75
mm
+/ - 0.500
(Equiv. 1.25 in.) - Type 2 (Chamfer Both Ends)
- Chamfer 0.50 x 15 Deg
- Standard Based on ISO 2338
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWS3-125-1250
- DOWS31251250
- A9X31-0440
- A9X310440
