CP-032-032-19-023-H-SA - Datasheet

MBA

Category Information

Couplings - Helical - Standard

Standard Helical Couplings. 0.1 to 16.2 Nm.

  • An expanded range may be available on special order. Please enquire.
  • Zero backlash.
  • Max. Ang Misalignment 5 Degree
  • Max Parallel Offset 0.25mm.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Bore (B1) : 3.175 mm
    (Equiv. 0.125 in.)
  • Bore (B2) 3.171 mm
    (Equiv. 0.125 in.)
  • OD (D) / Clearance Dia (H) 19.050 mm
    (Equiv. 0.75 in.)
  • Length (L) 22.860 mm
  • Max. Momentary Dyn. Torque 0.6 N.m
  • Hub Config/Hub Diameter Clamp Hub / 19.050 mm
  • Torsional Flexibility 156.6 Arc.Min / N.m
  • Material Aluminium 7075-T6
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • S50HAA-075H0404
    • S50HAA075H0404
    View full details

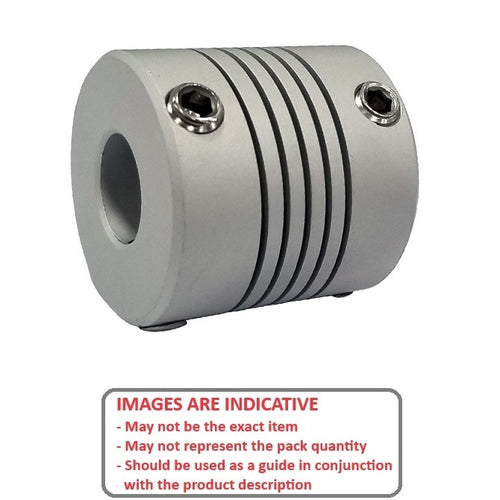

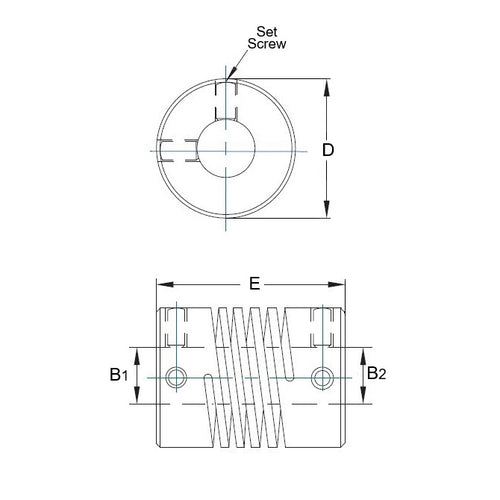

    CP-032-032-19-023-H-SADiagramCP-032-032-19-023-H-SAImage
