BFM-125-N - Datasheet
MBA
Category Information

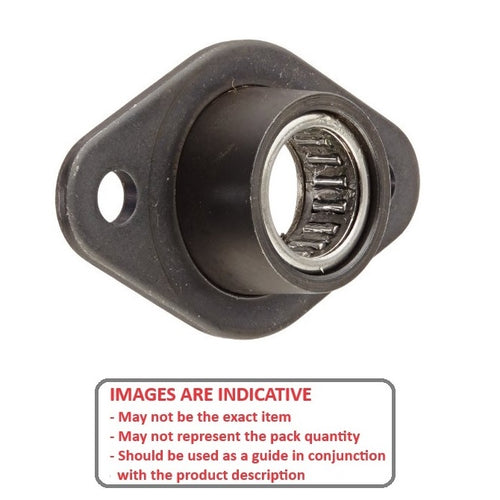

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - Needle RollerNeedle Roller Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted needle roller bearings
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

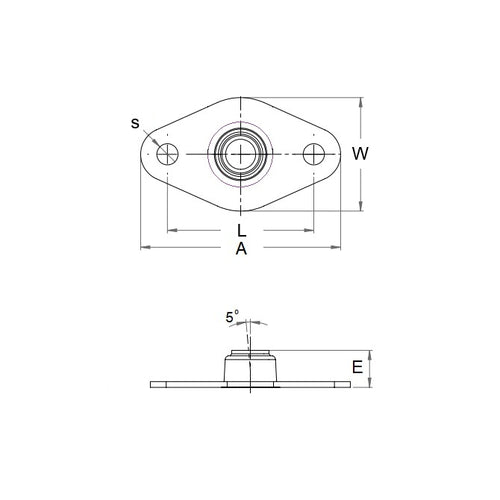

- Nominal Shaft Size
:
3.175
mm
(Equiv. 0.125 in.) - Width (W)
45.72
mm
(Equiv. 1.8 in.) - Overall Length (A)
13.46
mm
(Equiv. 0.53 in.) - Overall Height (E) 22.35 mm
- Min to Max Shaft Dia. 3.167 to 3.175 mm
- Max. Radial Dynamic Load 1601 N
- Bolt Hole Centres (L) 30.99 mm
- Max Speed 31500
- Material Steel
