SK048W-006-SL-CZ - Datasheet

MBA

Category Information

Screws - Countersunk - Slotted - Steel

Steel Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - BA - METRIC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

  • Thread Size (C) : 3/16-24 BSW (4.76mm)
  • Overall Length (L) 6.4 mm
    (Equiv. 0.252 in.)
  • Material Zinc Plated Steel
  • Max Head Diameter 9.78 mm
  • Max Head Height 3.2 mm
  • Type Countersunk / Slotted
  • Pitch 1.058 mm
  • Threads Per Inch 24 TPI
  • Material Zinc Plated Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Hitech MSCSZP31614
View full details

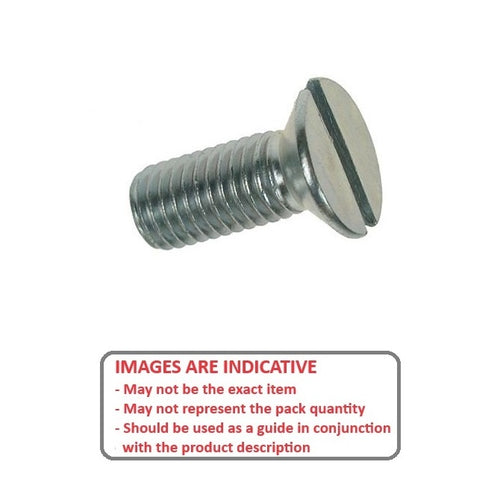

SK048W-006-SL-CZDiagramSK048W-006-SL-CZImage
