SK048W-006-PH-CZ - Datasheet

MBA

Category Information

Screws - Countersunk - Phillips - Steel

Steel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

  • Thread Size (C) : 3/16-24 BSW (4.76mm)
  • Overall Length (L) 6.4 mm
    (Equiv. 0.252 in.)
  • Material Zinc Plated Steel
  • Max Head Diameter (A) 9.20 mm
  • Max Head Height 3.2 mm
  • Type Countersunk / Philips
  • Pitch 1.058 mm
  • Threads Per Inch 24 TPI
  • Material Zinc Plated Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Hitech MSCPZP31614
View full details

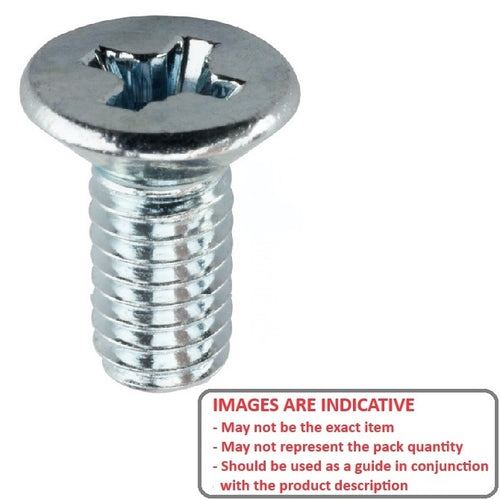

SK048W-006-PH-CZDiagramSK048W-006-PH-CZImage
