SK048W-019-SL-BR - Datasheet
MBA
Category Information

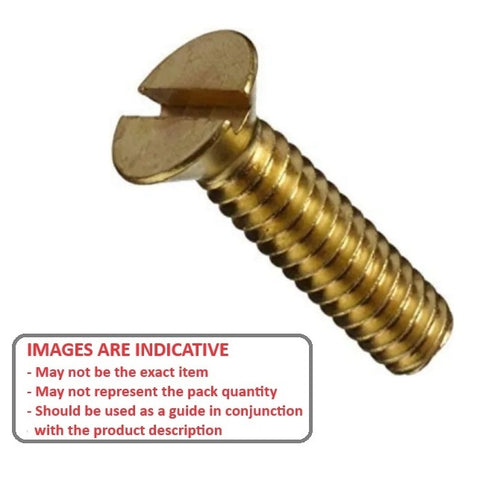

Screws - Countersunk - Slotted - BrassBrass Slotted Countersunk Screws. Flat Head Countersunk METRIC and BSW
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 3/16-24 BSW (4.76mm)
- Overall Length (L)
19.1
mm
(Equiv. 0.752 in.) - Material Brass
- Max Head Diameter 9.78 mm
- Max Head Height 2.95 mm
- Type Countersunk / Slotted
- Pitch 1.058 mm
- Threads Per Inch 24 TPI
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech BRCSP31634
