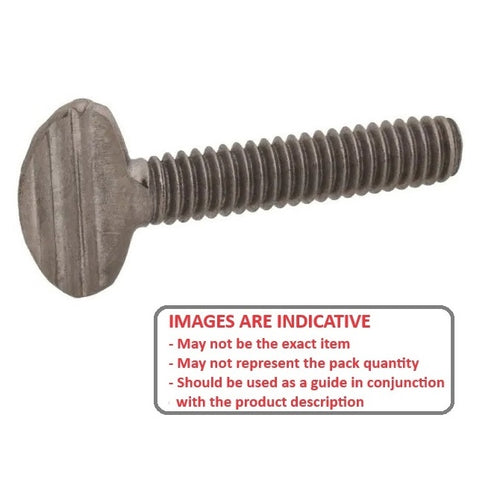

THS048W-019-F-CS - Datasheet
MBA
Category Information
Screws - Thumb - Flat Key Head - StandardStandard Flat Key Head Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

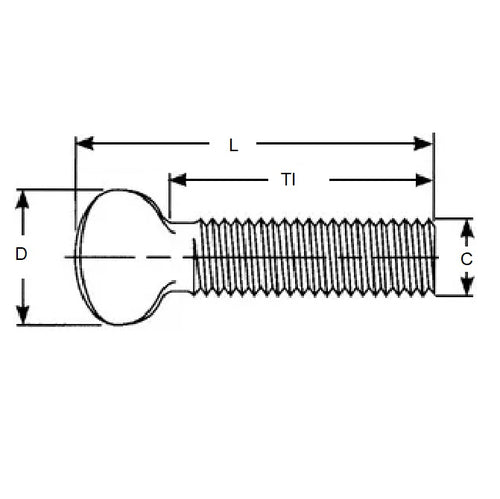

- Thread Size (C) : 3/16-24 BSW (4.76mm)
- Thread Length (Tl)
19.05
mm
(Equiv. 0.75 in.) - Overall Length (L)
30.40
mm
(Equiv. 1.197 in.) - Head Diameter (D) 13.70 mm
- Finish Zinc Plated
- Head Type Flat Key
- Material Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSTSZP31634
