Miniature Bearings Australia
RCL-030-073-ZD - Datasheet
MBA
Category Information

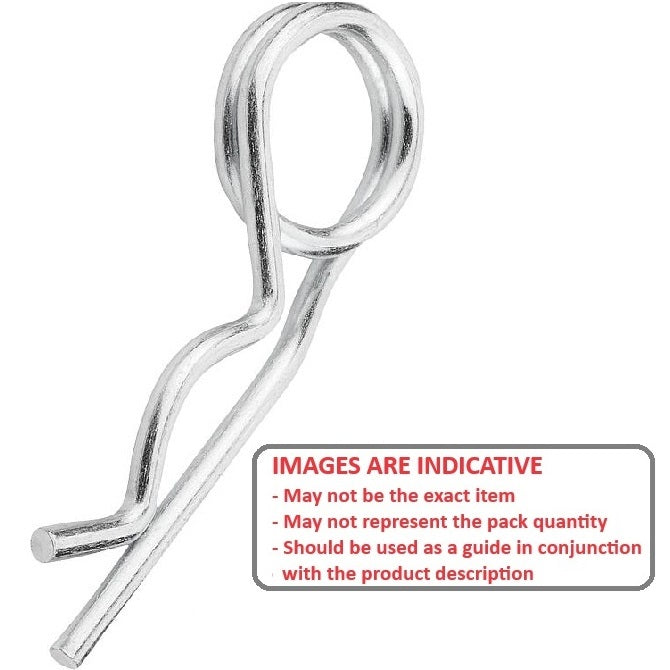

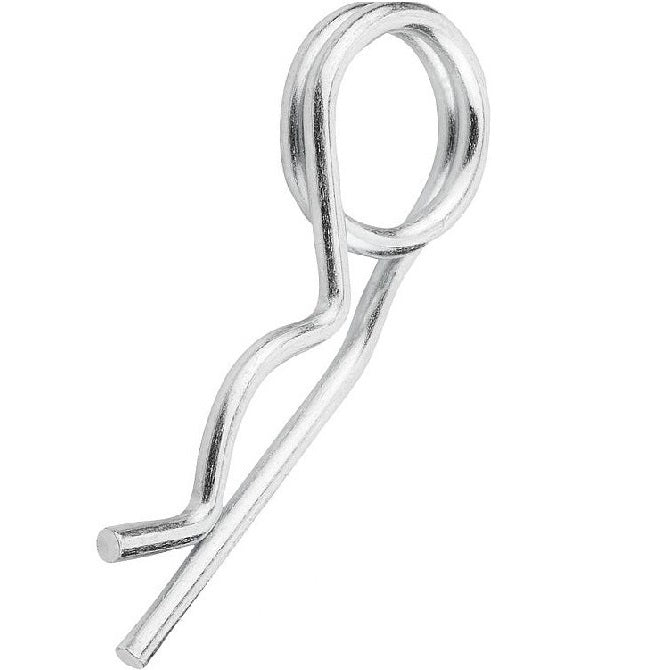

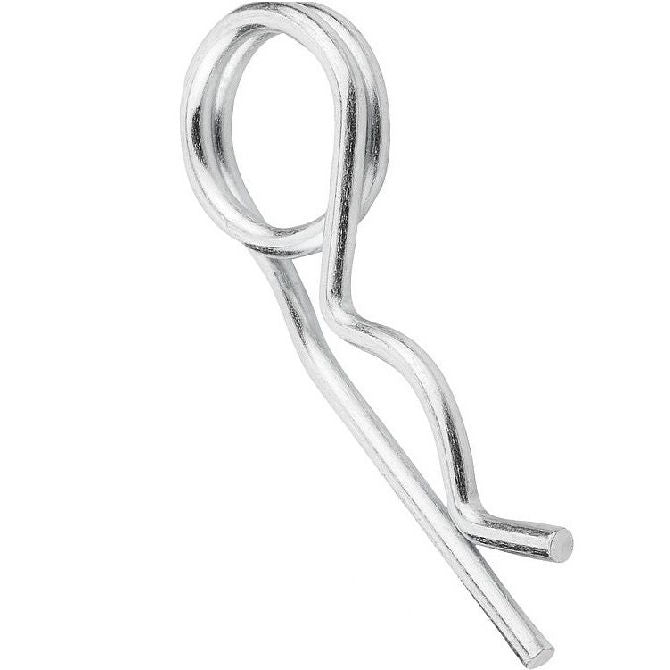

R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

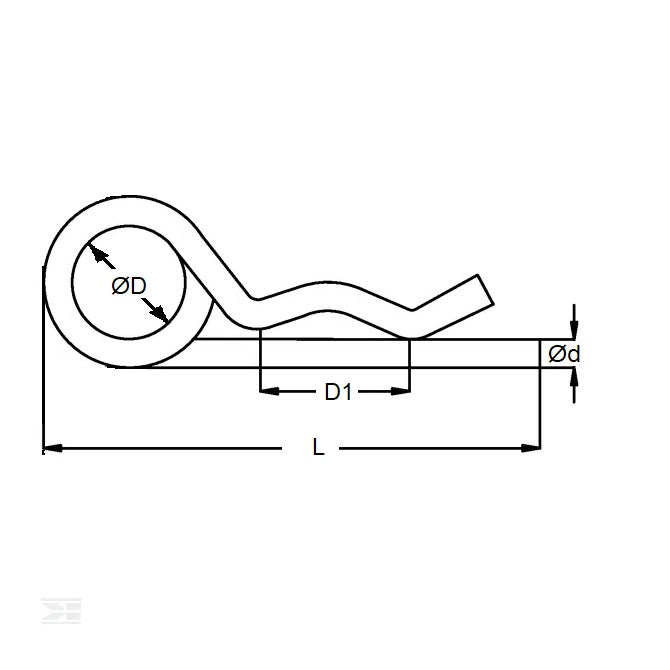

- Wire Thickness (d) : 3.00 mm
- Length (L) 73.0 mm
- Material Zinc Plated
- Drill Hole Size 3.50 mm
- Approx.Inside Eye (D) 16.00 to 18.00 mm
- Shaft Size Range 14.00 to 20.00 mm
- Approx. Bridge Length (D1) 26 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98335A770
- RPD362
- RPD3-62
