W0020-F-004-180-BN - Datasheet

MBA

Category Information

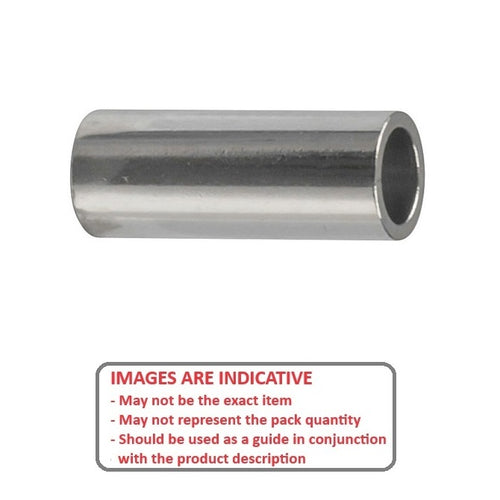

Spacers - Through Bore Round - Brass

Brass Through Bore Round Spacers. Shaft spacers - Brass

  • An expanded range may be available on special order. Please enquire.

Product Data

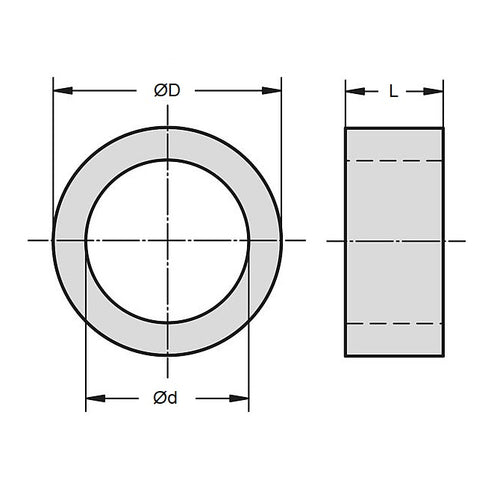

  • ID (d) : 2 mm + 0.38 / + 0.18
    (Equiv. 0.079 in.)
  • OD (D) 4 mm + 0.0 / - 0.03
    (Equiv. 0.157 in.)
  • Length (L) 18 mm + / - 0.09
    (Equiv. 0.709 in.)
  • Material Brass - Nickel Plated
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • SPB W00220-00400-01800-SR-BN
  • W002200040001800SRBN
  • PLB2-18
  • PLB218
