Miniature Bearings Australia
RP020-0160-4 - Datasheet
MBA
Category Information

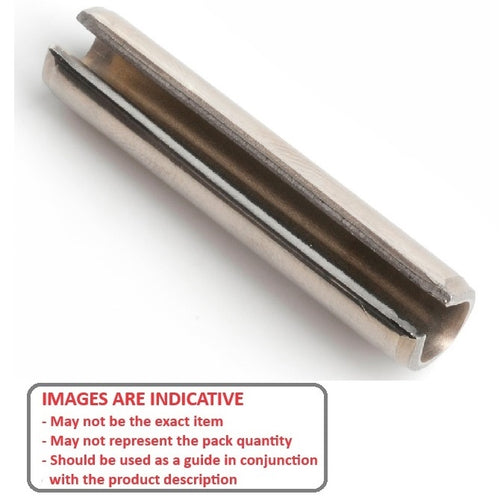

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
2.00
mm
(Equiv. 0.079 in.) - Length (L)
16.00
mm
(Equiv. 0.63 in.) - Free Diameter
2.20
mm
(Equiv. 0.087 in.) - Thickness (S) 0.40 mm
- Chamfer Length (cL) 0.35-0.55 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A208
- NoCor SPMS-020-016-304SS
- SPMS020016304SS
- SRP216
- SRP2-16
