P-025T-029-125A - Datasheet

MBA

Category Information

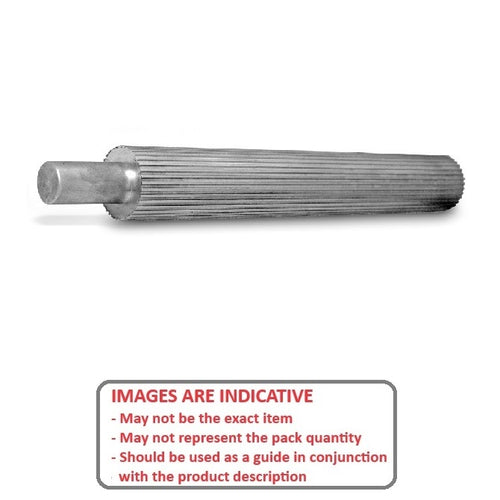

Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium

2.500mm Pitch T2.5 Aluminium Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
  • After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.

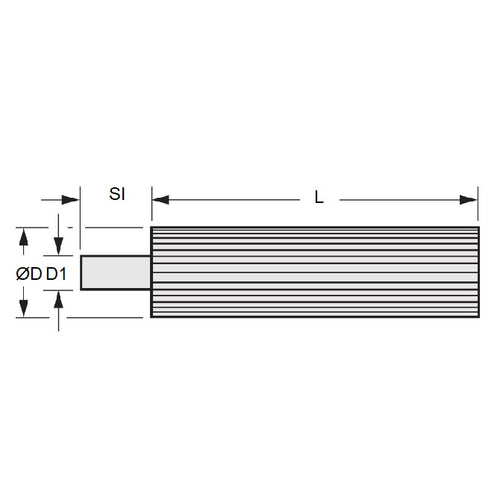

Product Data

  • Number of Teeth : 29
  • Min. Usable Length (L) 125.0 mm
    (Equiv. 4.921 in.)
  • Pitch Diameter (PD) 23.15 mm
    (Equiv. 0.911 in.)
  • Outside Diameter (OD) 22.55 mm
  • Shank Diameter (D1) 12.70 mm
  • Shank Length (Sl) 20.0 mm
  • Material Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 29T2.5-PS125A
  • A6A31M029T12
  • 29T25PS125A
