Miniature Bearings Australia
BV16-02951-5V1180 - Datasheet
MBA
Category Information

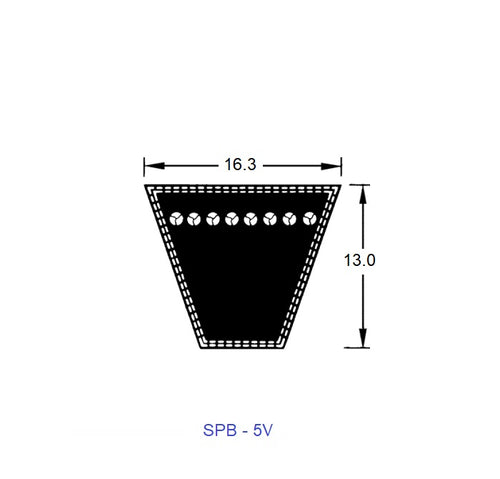

Belts - Wedge - 16.3 x 13.0mm - SPB 5VSPB 5V 16.3 x 13.0mm Wedge Belts. 16.3mm Top Width x 13.0mm Height.
- Wedge belt are specialized V-belt designed with a more compact, wedge-shaped profile to transmit higher power in smaller, space-constrained drive systems.
- Designed to offer greater load-carrying capacity and efficiency compared to standard V-belts, Ideal for demanding applications like automotive engines, compressors, and industrial machinery.
- Also known as a narrow V-belt
- Sizes are nominal and may vary slightly.
Product Data
- Pitch Length
:
2951.2
mm
(Equiv. 116.189 in.) - Type Standard - Wedge Belt
- Re-Inforcement Polyester
- Material Natural Rubber - Fabric Jacket
Product Compliance and Data
Additional Resources
Cross References
- BTQ-5V1180
- BTQ5V1180
