GCR-015-M05-020-019-P - Datasheet
MBA
Category Information

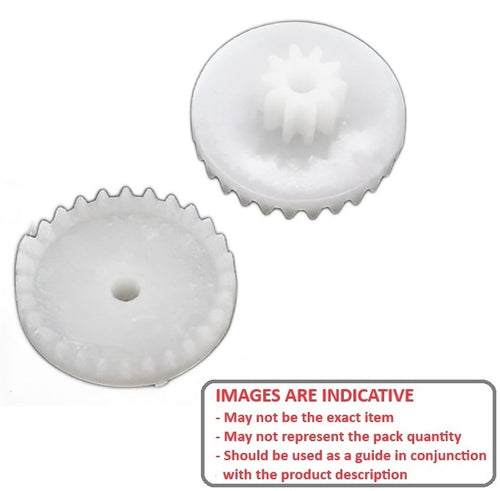

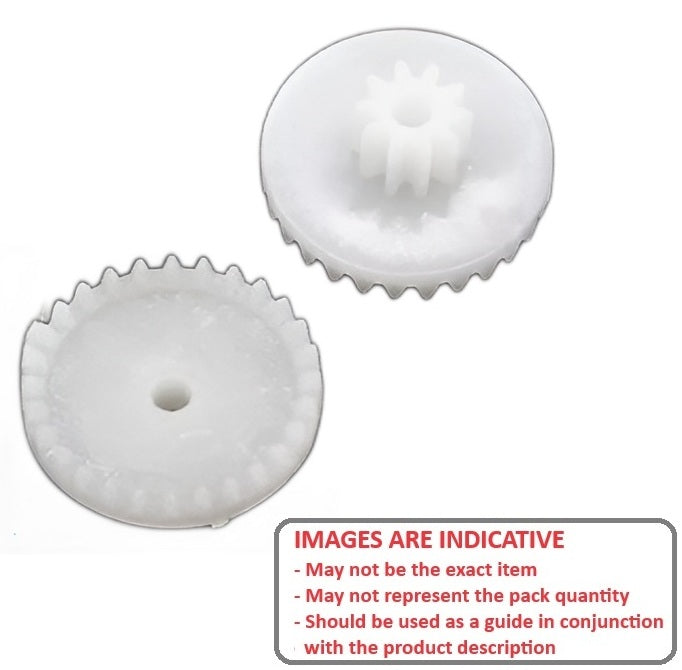

Gears - Crown Wheel Module 0.5 PlasticCrown Wheel Module 0.5 Plastic Gears. PCD = No. of Teeth x 0.500mm - POM Plastic
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Plastic Only
- Inexpensive for hobby and toy use
- No locking mechanisms
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth On Face : 28
- Teeth On Drive Gear (Rear) 10
- Bore
1.9
mm
(Equiv. 0.075 in.) - Face Diameter 14.5 mm
- Face Width 2.5 mm
- Overall Length 6.5 mm
- Quality Hobby
- Material POM Plastic
