CP-286K-286K-48-079-R1-SC - Datasheet

MBA

Category Information

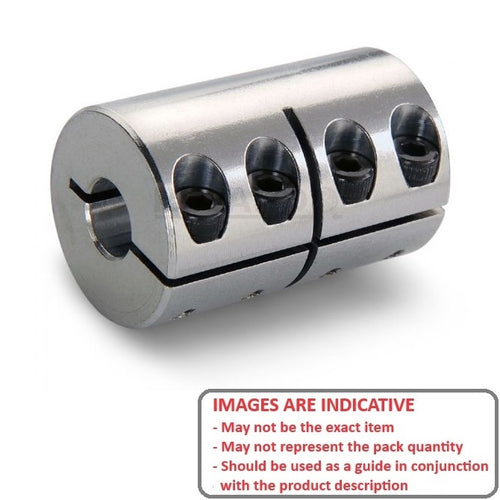

Couplings - Rigid - Clamp - 1 Piece - Steel

Steel 1 Piece Clamp Rigid Couplings. 12L14 Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Bore (b1) : 28.575 (Keyed) mm
  • Bore (b2) Keyed 28.575 mm
  • OD (D) 47.620 mm
  • Length (L) 79.370 mm
  • Features 6.35 Keyway
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 61005K177
    • Reid Tool® CC-116
    • CC116
    View full details

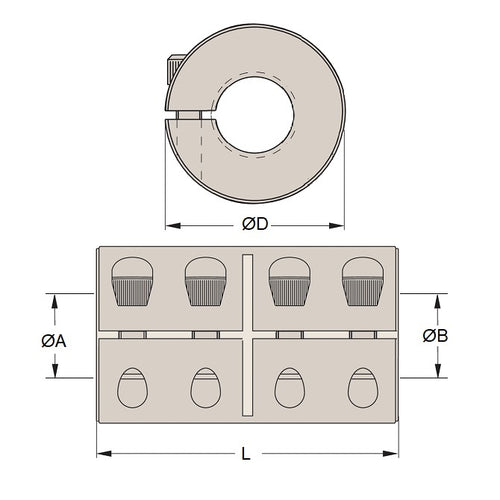

    CP-286K-286K-48-079-R1-SCDiagramCP-286K-286K-48-079-R1-SCImage
