CCE-02699H-C - Datasheet
MBA
Category Information

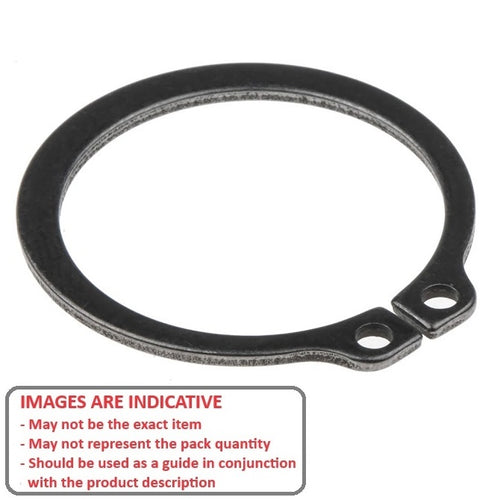

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
26.99
mm
(Equiv. 1.063 in.) - Clip Thickness (T)
2.36
mm
+ 0.051 / - 0.102
(Equiv. 0.093 in.) - Groove Dia. (Dg)
25.35
mm
+/- 0.076
(Equiv. 0.998 in.) - Approx. Loose Circlip ID (A) 24.84 mm
- Groove Width (W) 2.62 mm
- Clearance on Shaft (C1) 38.61 mm
- Clearance in Groove (C1) 37.08 mm
- Min. Lug Diameter (h) 2.31 mm
- Min. Extension (n) 2.44
- Standard MIL-3217
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98585A122
- NoCor SHR-106
- N14600106
- N1460-0106
- SHR106
