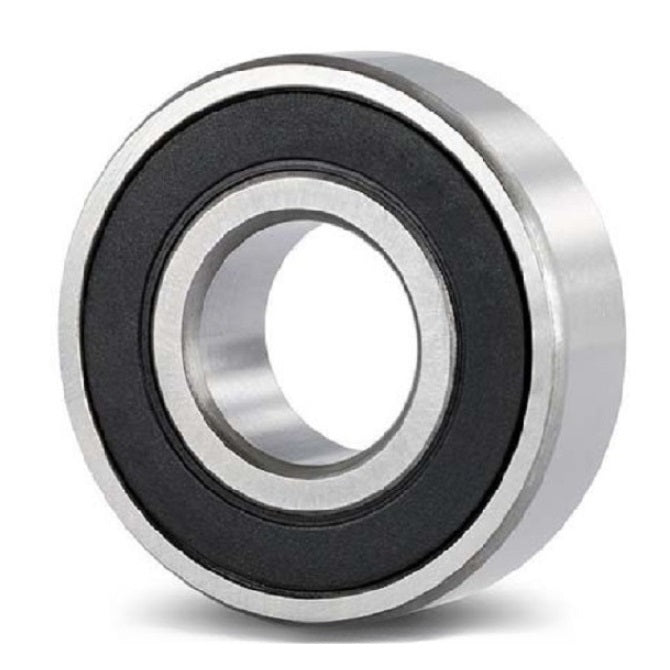

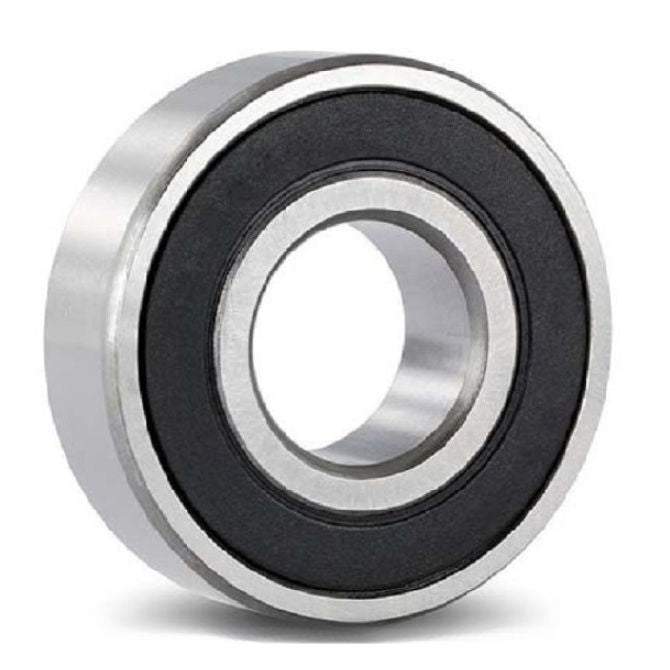

S174-6205-2RS - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - 17-4PH Stainless

17-4PH Stainless Precision Unflanged Single Row Ball Bearings. Excellent Corrosion and Heat resistance - Hardness is between 300 grades and 400 grades. SUS630 grade.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Standard bearing tolerances
  • Low load, low speed applications requiring maximum corrosion resistance.
  • Rubber seals are Nitrile but fluorine rubber may be available on request
  • Cages and shields from AISI 304 Stainless Steel.
  • Balls and races from SUS630 (17-4PH) Stainless Steel

Product Data

  • ID (d) : 25.000 mm + 0 / - 0.010
    (Equiv. 0.984 in.)
  • OD (D) 52.000 mm + 0 / - 0.013
    (Equiv. 2.047 in.)
  • Width (B) 15.000 mm + 0 / - 0.120
    (Equiv. 0.591 in.)
  • Precision Grade Semi-Precision
  • Closure Type 2RS
  • Bearing Type Radial
  • Information Rockwell 85 HRB (Vickers HV170)
  • Material Stainless Steel 17-4 PH
  • Lubrication Type Grease
  • Lubrication Name Fluorinated Grease
  • Basic Part 6205
  • Limiting Speed 8840
  • Cage Type Standard
  • Static Load Rating KGf 804
  • Dynamic Load Rating KGf 1429
  • Radii 1.00 mm
  • Inner Shoulder (UI) 34.00mm
  • Outer Shoulder (UO) 45.70 mm
  • Number of Balls 9
  • Clearance -
  • Precision Grade Abec 1
  • Closure Type 2RS
  • Max Temperature 80 Deg. C
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Sealed S174 / 15
  • 6205
  • 6205 Basic Size Ref
